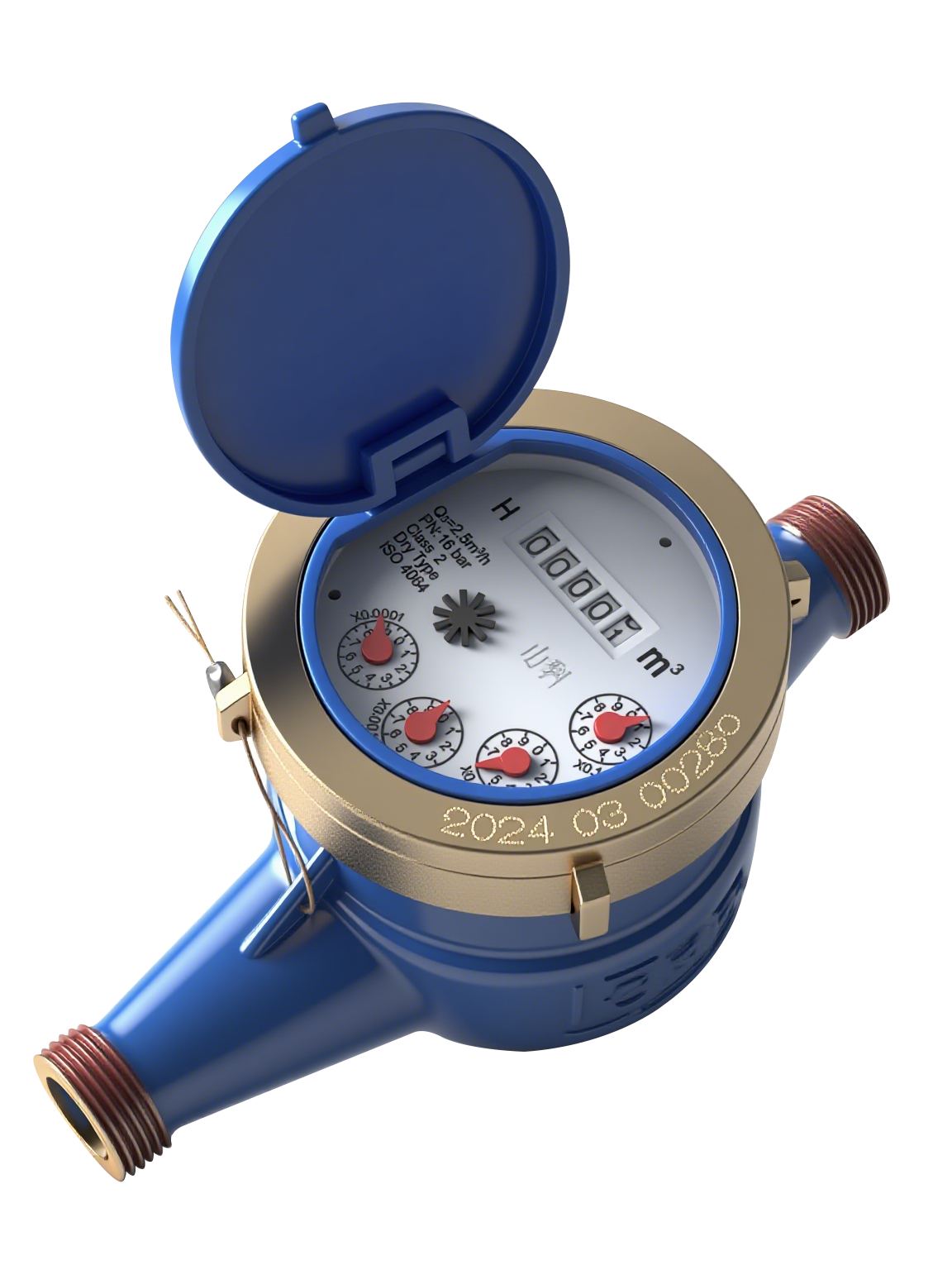

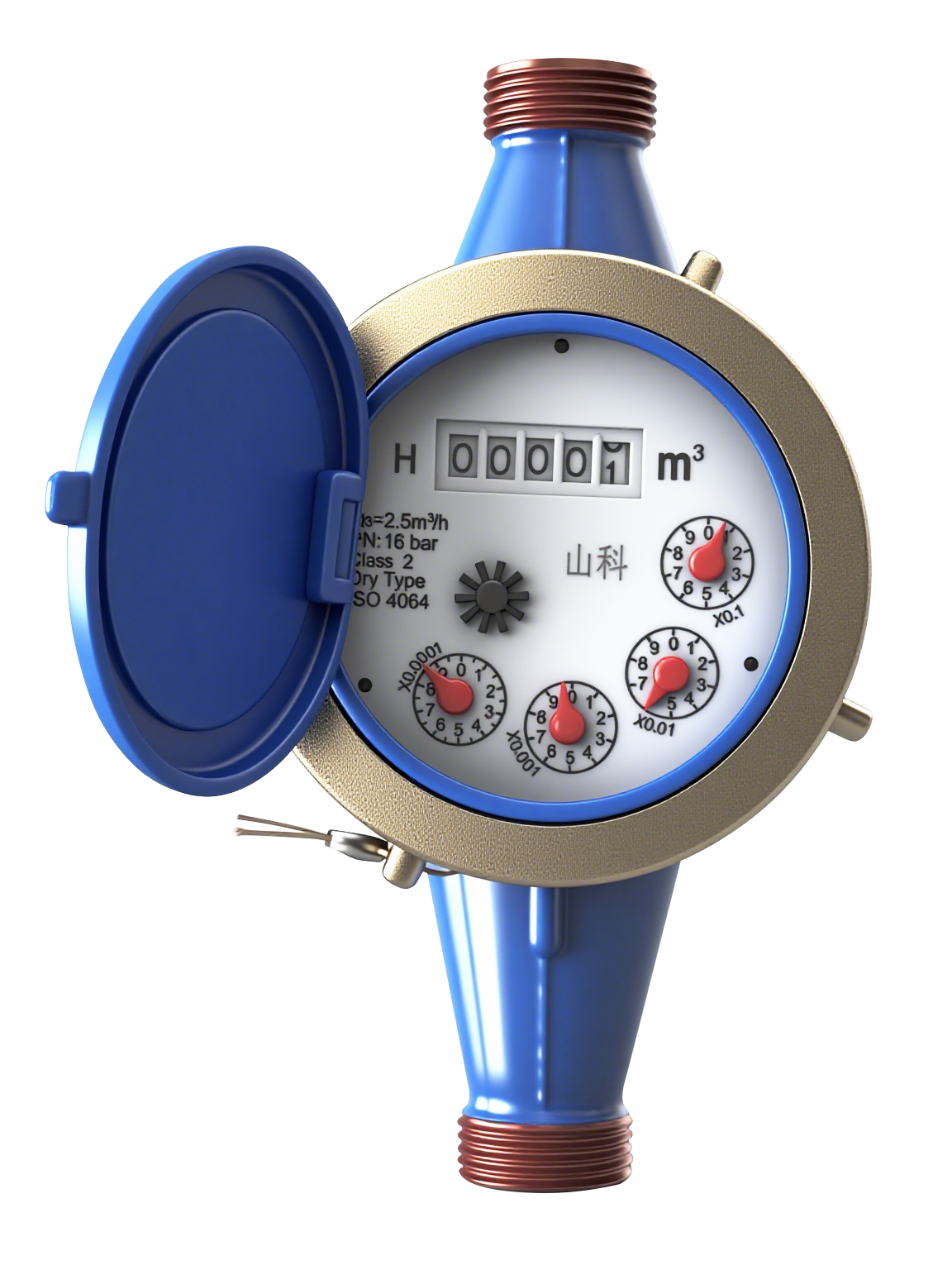

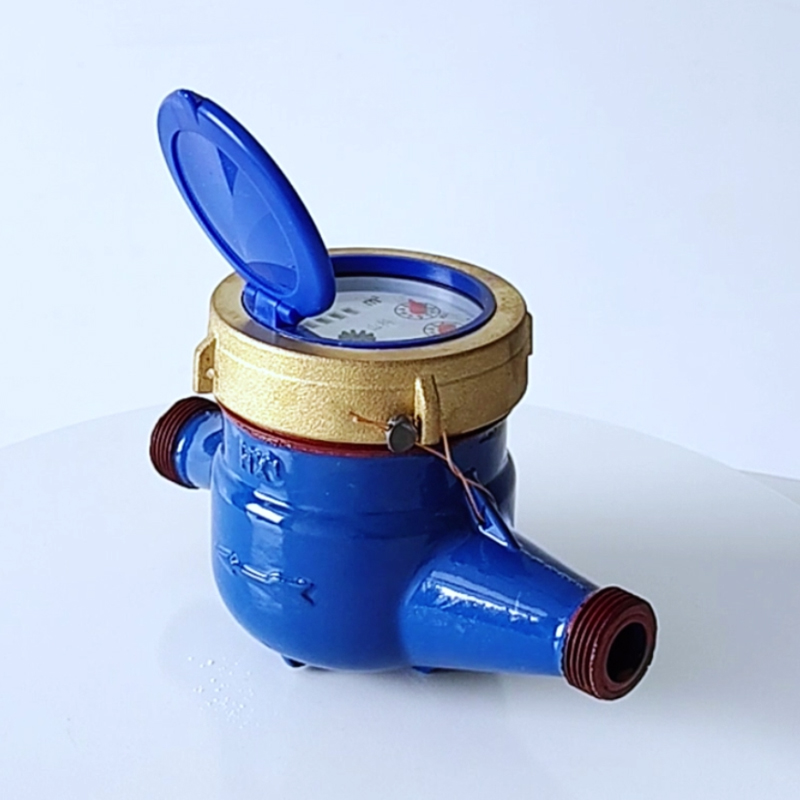

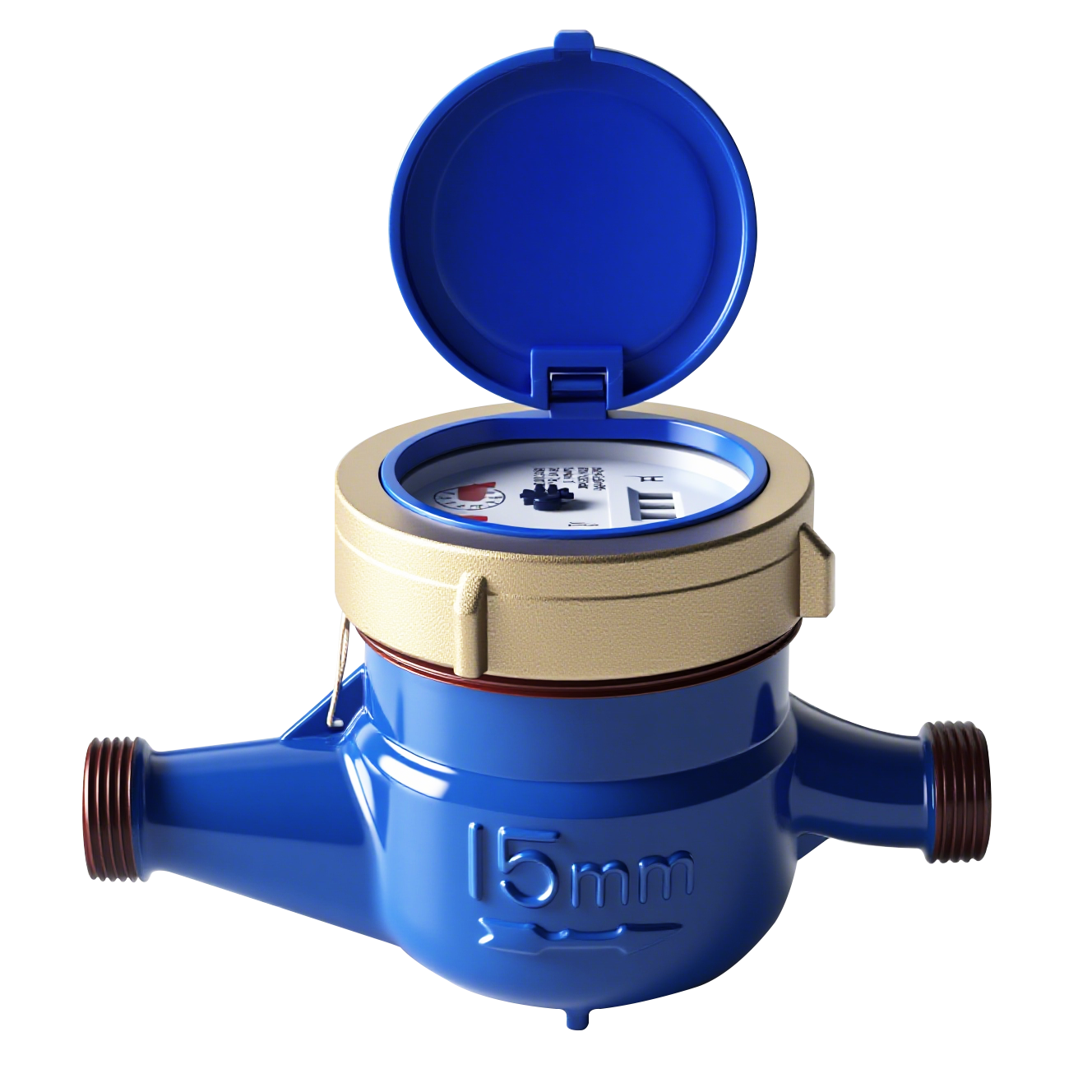

▲Usage: For measuring the total amount of water flowing through a tap water pipeline. Not to be used for measuring hot water, sewage, or corrosive liquids.
▲Features: Good versatility and interchangeability of components. The meter body is treated with electrostatic spraying inside and out, ensuring strong corrosion resistance.
▲Operating conditions: Water temp:0.1℃~30℃;Water pressure≤1MPa
▲Pressure loss: △P<0.063MPa
▲Maximum allowable error: Within the water temp range of 0.1℃ to 30℃, in the high zone (Q2≤Q≤Q4), it's ±2%; in the low zone (Q1≤Q＜Q2), it's ±5%.
