Non-Magnetic Smart Remote Water Meter

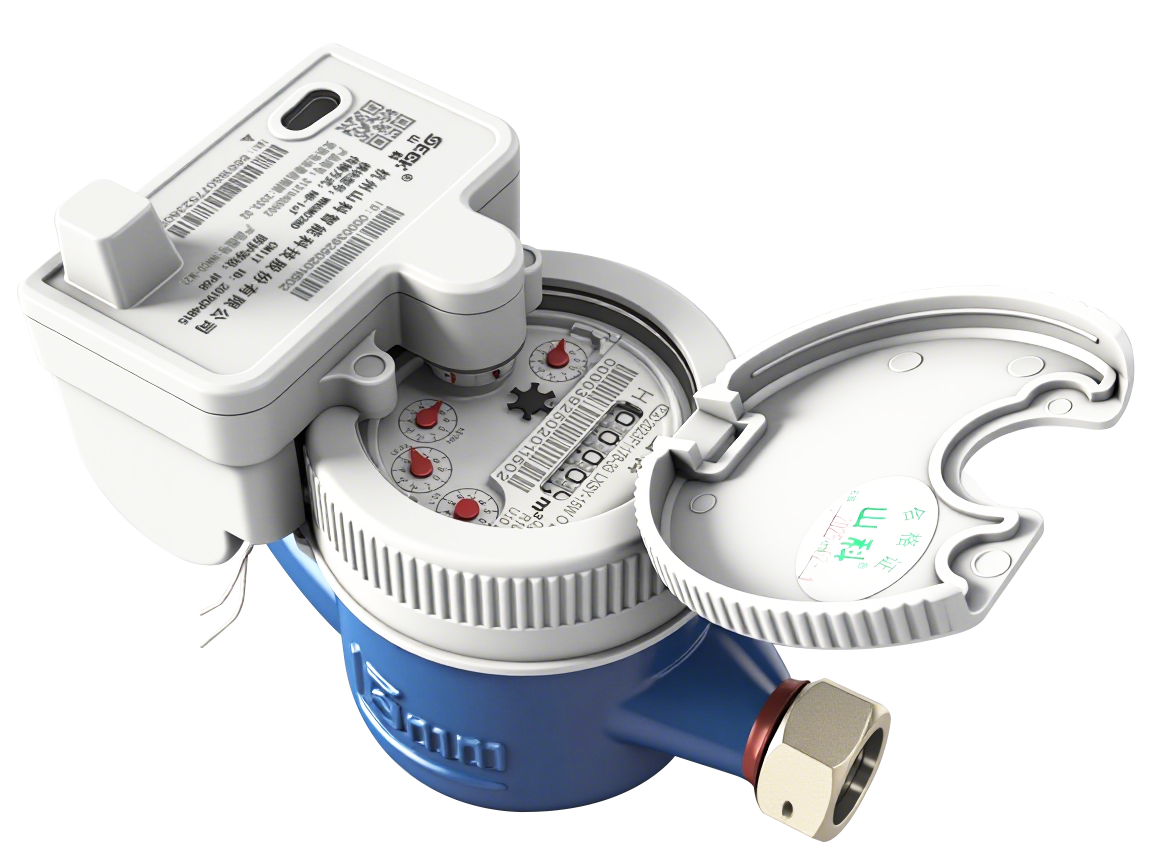

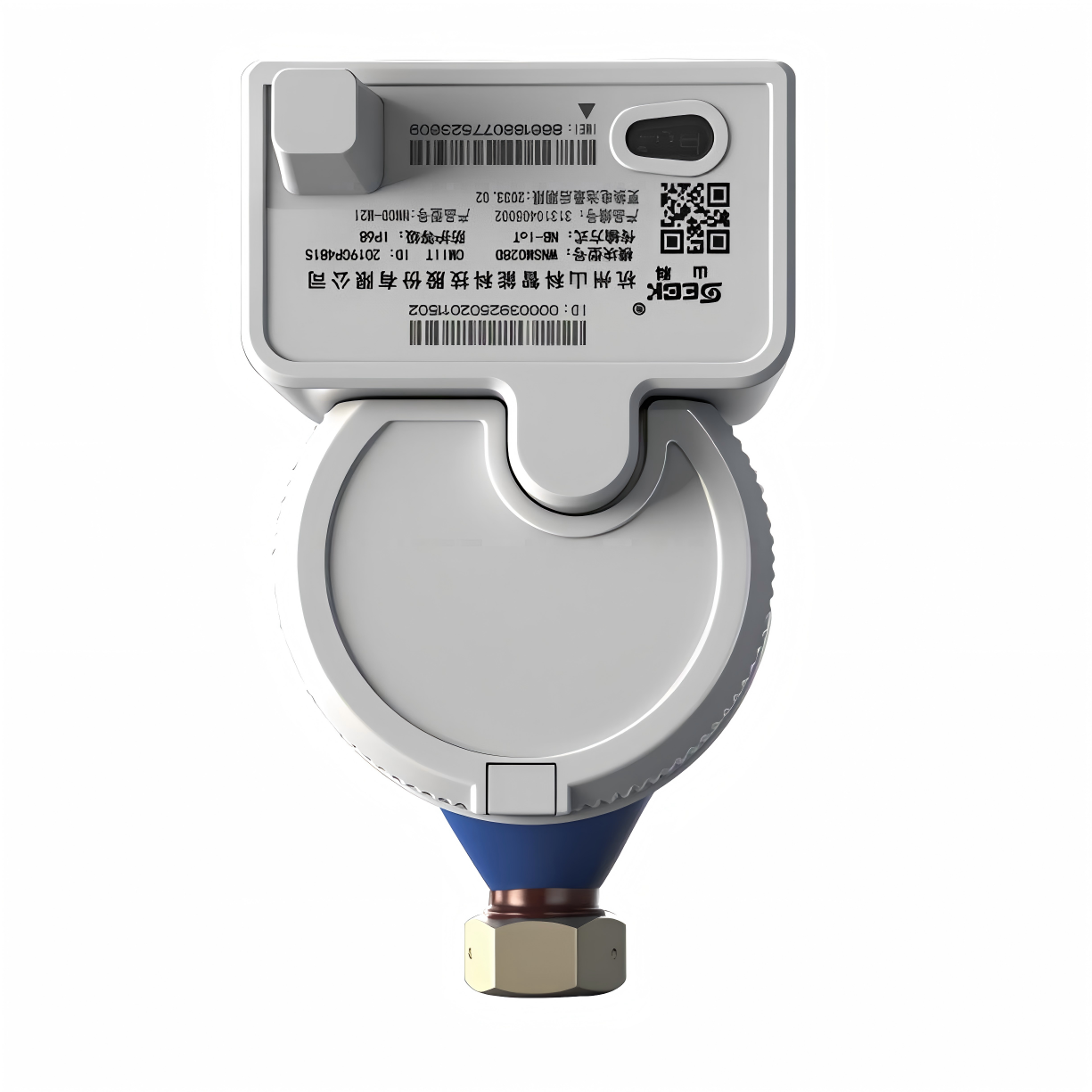

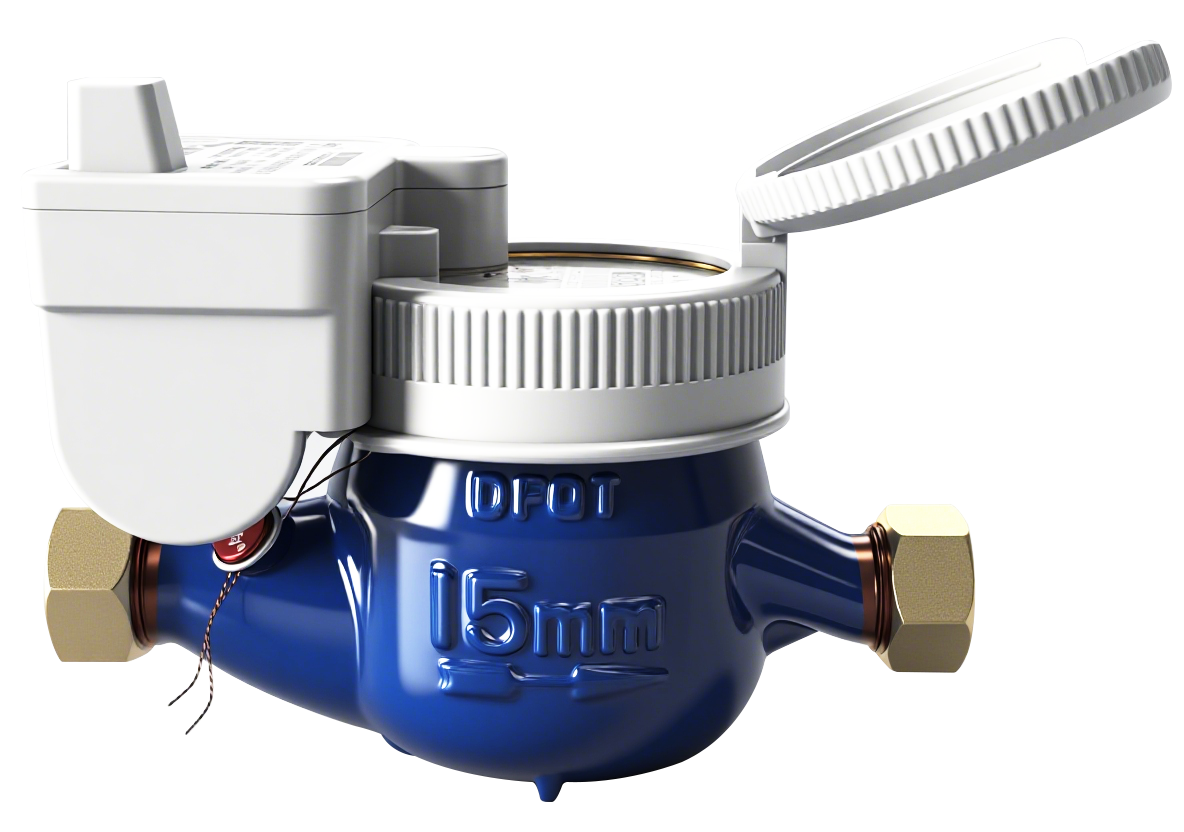

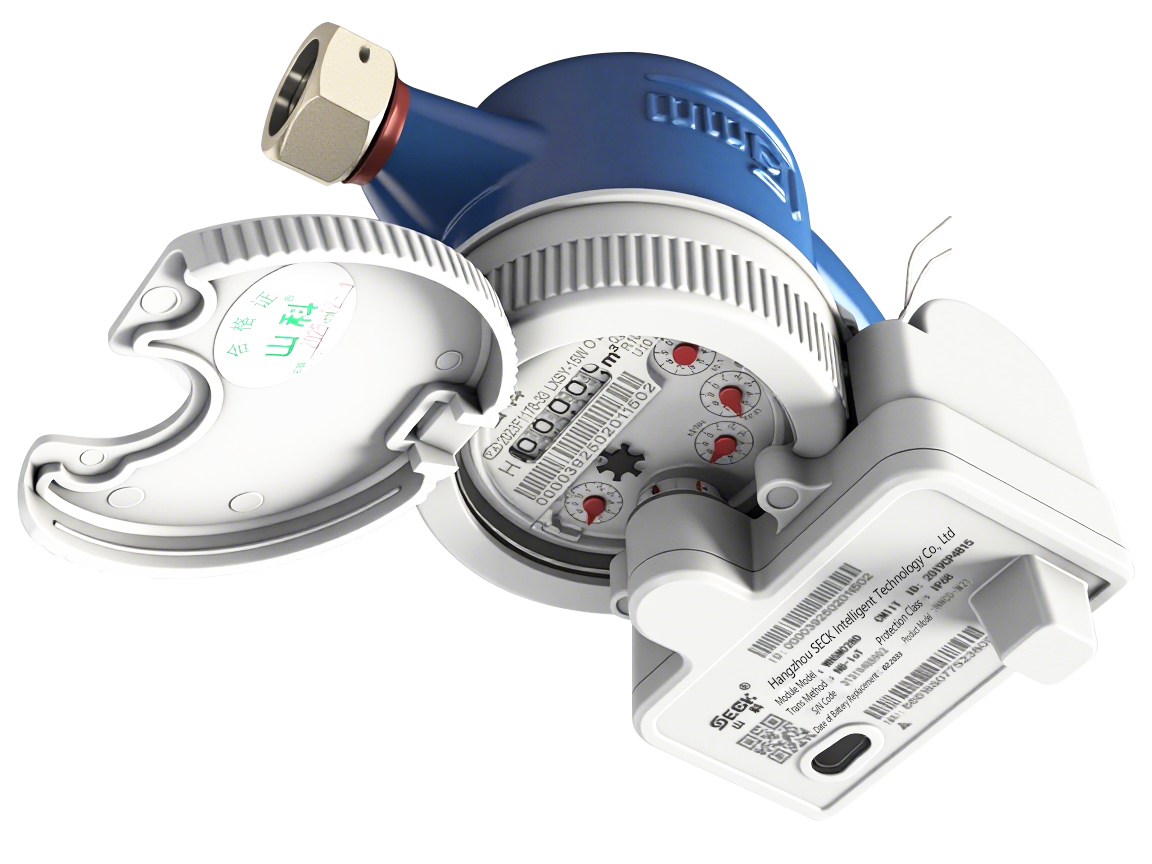

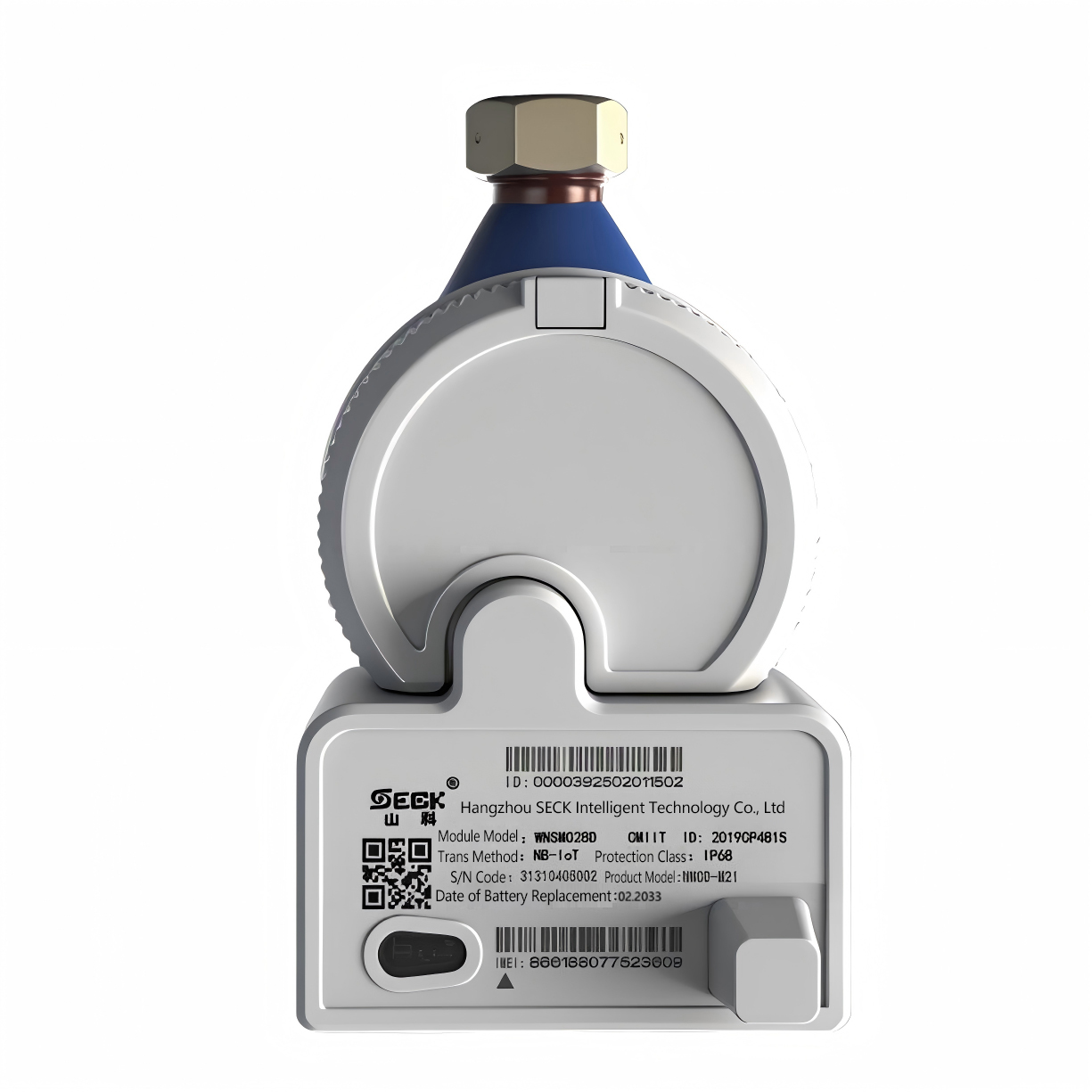

M28 Non-Magnetic Smart Remote Water Meter

▲The remote transmission module and base meter feature a split-type design, facilitating installation and reducing maintenance costs.
▲Non-Magnetic principle for data acquisition, low-power design, and resistance to magnetic interference.
▲Communication can be achieved through M-BUS or RS485 bus methods, or via wireless means such as NB-IoT, LoRa, or LoRaWAN, enabling remote direct reading of the water usage from the water meter.
▲Wet-type base meter, available in various materials such as copper shell, iron shell, plastic shell, and stainless steel shell.
▲The communication protocol of this series of water meters can be customized according to customer requirements.
▲ With an IP68 protection rating, it adapts to various harsh environments.

Details

Function Parameters Dimensions

This product is the SECK Non-Magnetic Smart Remote Wireless Water Meter. Based on NB-IoT narrowband cellular wireless communication technology, this low-power wireless remote water meter adopts a split-type design that preserves the structure of traditional water meters without compromising measurement accuracy or sensitivity. As an electromechanical integrated electronic remote water meter for automatic meter reading systems, it features ultra-low power consumption, high measurement accuracy, low minimum starting flow rate, convenient meter reading, aesthetically pleasing appearance, high sensitivity, strong anti-interference capability, and long transmission distance.



Working with intelligent meter reading system software, the non-magnetic smart remote wireless water meter performs intelligent meter reading for residential communities and enables networked data sharing with settlement centers.


Basic Parameters


Communication Method

M-bus

485

NB-IOT

4G

Operating Voltage

30V

3.3-5V

3.6V

3.6V

Operating Frequency

-

-

850/950MHz

824MHz~2690MHz

Transmission Distance

1000m(normal)

200m(normal)

Within the base station coverage area

Battery Capacity

-

-

8.5\10.5\19Ah

19Ah

Quiescent Current (Average)

-

-

12 μA

15 μA

Operating Current (Average)

1.5mA

2mA

30mA

40mA

Battery Life

-

-

6 \8 \10y

6y

Protection Rating

IP68

IP68

IP68

IP68

Pressure Rating (MAP)

1.0MPa\1.6MPa

1.0MPa\1.6MPa

1.0MPa\1.6MPa

1.0MPa\1.6MPa

Pressure Loss Class

△p63

△p63

△p63

△p63

Temperature Class

T30

T30

T30

T30

Upstream Flow Field Sensitivity Level

U0\U3\U5\U10

U0\U3\U5\U10

U0\U3\U5\U10

U0\U3\U5\U10

Downstream Flow Field Sensitivity Level

D0\D3\D5

D0\D3\D5

D0\D3\D5

D0\D3\D5

Environmental Safety Class

B \O

B \O

B \O

B \O

EMC Class

E1\E2

E1\E2

E1\E2

E1\E2

Accuracy Class

2

2

2

2


Flow Parameters


Nominal Diameter

DN

Range Ratio

Q3/Q1

Overload Flow Rate

Q4

Permanent Flow Rate

Q3

Transitional Flow Rate

Q2

Minimum Flow Rate

Q1

Minimum Reading

Min

Maximum Reading

Max

mm

(m3/h)

(L/h)

m3

15

80

3.125

2.5

50

31.25

0.00005

99999

100

40

25

125

32

20

160

25

15.625

20

80

5

4

80

50

0.00005

99999

100

64

40

125

51.2

32

160

40

25

25

80

7.875

6.3

126

78.75

0.00005

99999

100

100.8

63

125

80.64

50.4

160

63

39.375

32

80

12.5

10

200

125

0.00005

99999

100

160

100

125

128

80

160

100

62.5


Note:

Actual values shall be subject to the dial markings.

Maximum Permissible Errors:

    Lower zone: From the minimum flow rate (Q1) inclusive to the transitional flow rate (Q2) exclusive: ±5%

    Upper zone: From the transitional flow rate (Q2) inclusive to the overload flow rate (Q4) inclusive: ±2%

    Flow Ratios: Q4/Q3=1.25Q2/Q1=1.6

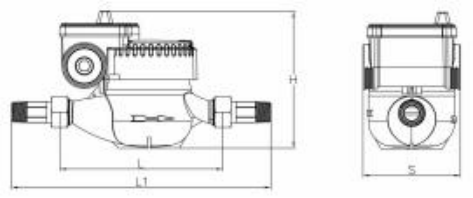

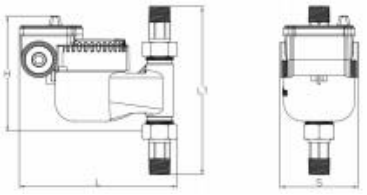

Type

Diameter

L1

L

S

H

Connection Thread

Connection Thread

Weight



mm

d

D

kg

LXSY-15W

15

258

165

96

136

R1/2

G3/4

1.7

LXSY-20W

20

298

195

96

138

R3/4

G1

2.0

LXSY-25W

25

345

225

96

140

R1

G1 1/4

2.5

LXSY-32W

32

371

245

110

145

R1 1/4

G1 1/2

3.2

LXSYL-15W

15

190

180

96

148

R1/2

G3/4

1.7

LXSYL-20W

20

200

190

96

152

R3/4

G1

2.0

LXSYL-25W

25

220

205

96

156

R1

G1 1/4

2.5

LXSYL-32W

32

235

225

110

160

R1 1/4

G1 1/2

3.2

Note: The dimensions and weight are for reference only. The actual product shall prevail.
