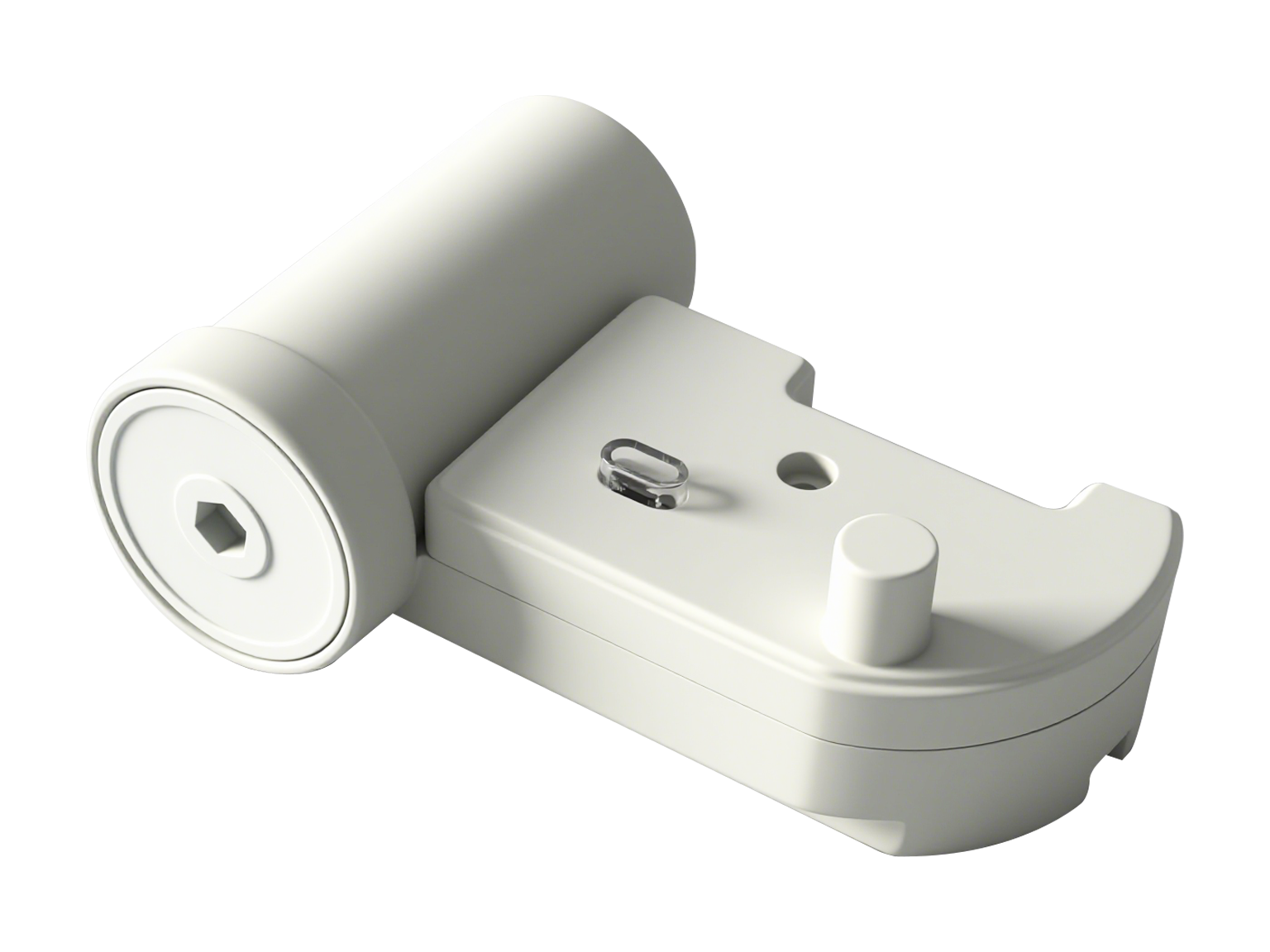

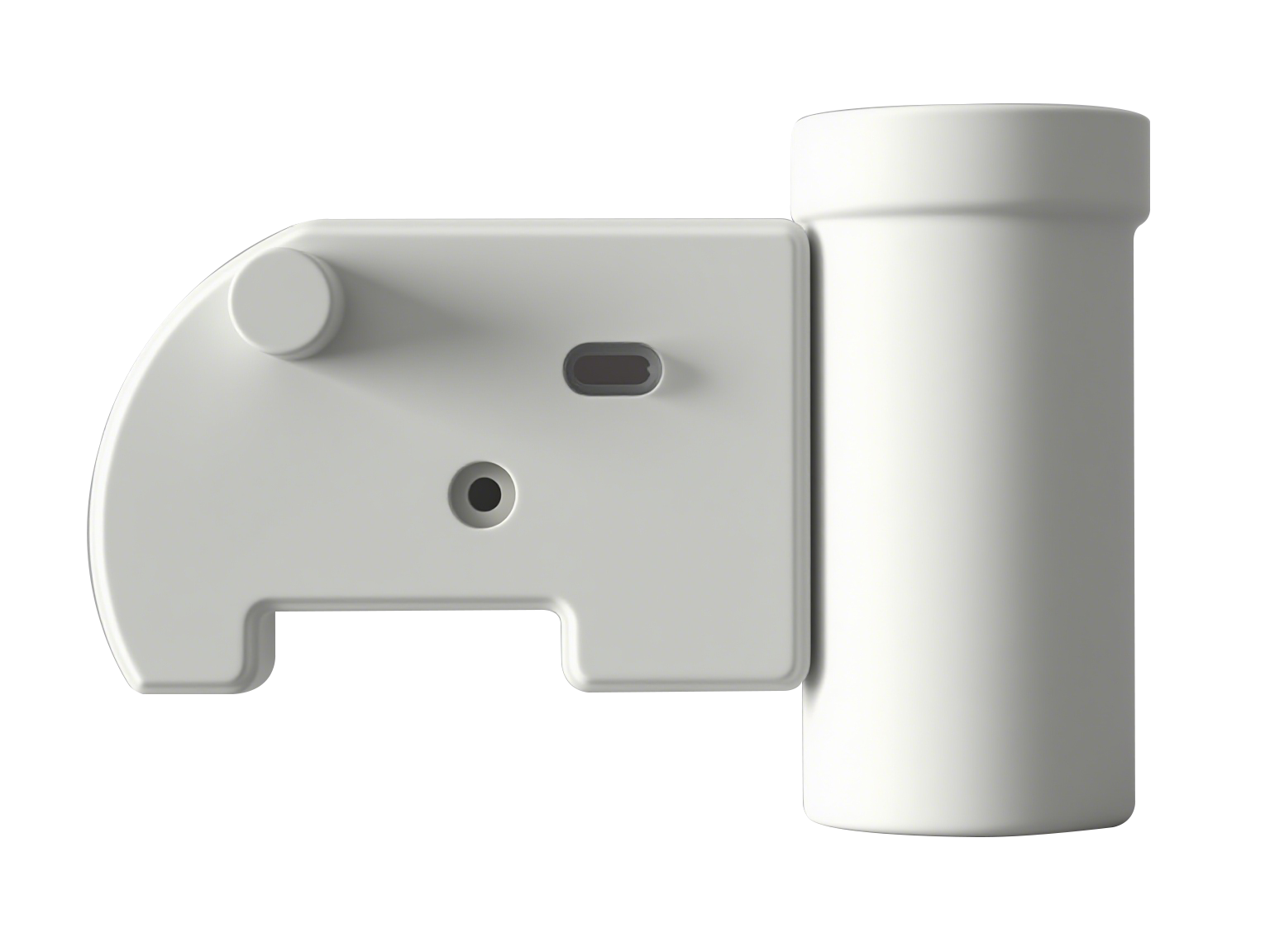

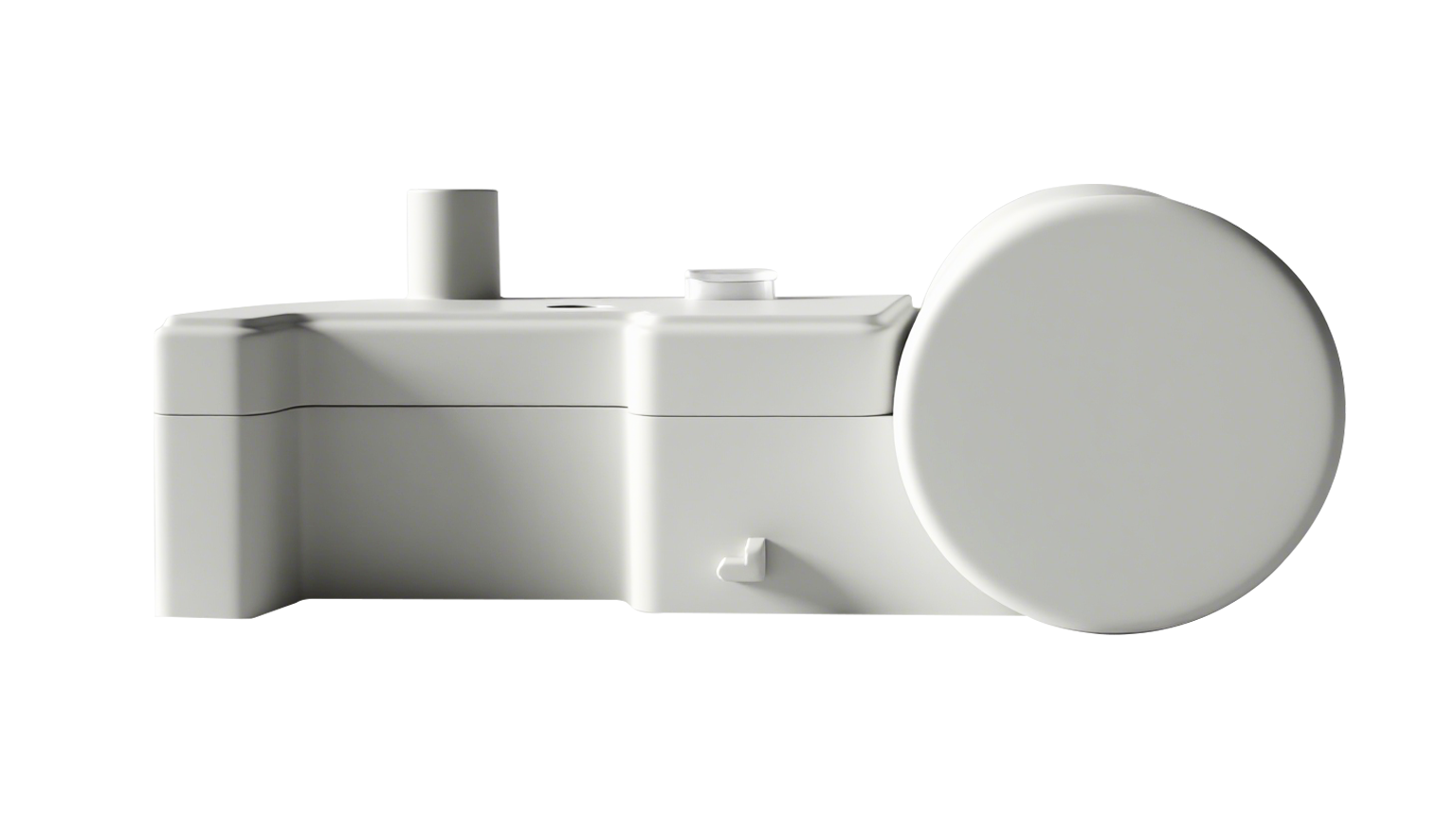

Split-Type Non-Magnetic Communication Module

Split-Type Non-Magnetic Communication Module

▲Class E1 electromagnetic immunity, unaffected by external voltages and high/low frequency disturbances.
▲IP68-rated design, suitable for permanent submersion applications.
▲Wireless meters feature low maintenance costs; the product adopts a modular design where the wireless communication box components can be repurposed.
▲Ultra-low power system design, enabling 7 years of continuous operation from a single 8.5 Ah lithium battery.

Details

Function Parameters Dimensions

The SECK Split-Type Non-Magnetic Communication Module utilizes the eddy current effect of metal. When the semi-circular stainless steel sheet in the non-magnetic water meter rotates synchronously with the red pointer shaft, the inductance of the four coils of the non-magnetic sensor in the seck remote transmission module will change. The microcontroller detects the magnitude and trend of the inductance change of the four coils, performs logical processing, generates pulse counting signals, and then converts them into water meter readings to complete the counting function of the water meter.


Function

Describe

Data Collection Method

Non-Magnetic

Battery Capacity

3.6V8.5Ahreplaceable, non-rechargeable

Battery Life

7 y

Protection Class

IP68

Communication Method

LoRaWAN

Operating Frequency

CN470/AS923/AU915/US915/EU868

Standby Current

10μA (Avg.)

Transmission Distance

2000m transmission range with

open-field line of sight communication

Measurement Range

0-99999.999m³

Minimum Resolution

0.001m³



Dimensions: 121*100*49mm; external dimensions are for reference only and subject to the physical product.
