Camera Smart Water Meter

Camera Smart Remote Water Meter

▲Compatible with standard liquid-sealed base meters featuring roller windows without requiring modifications.
▲Supports meter-end identification and uploads of verifiable data, binarized images, roller frame images, and full-dial images, eliminating on-site meter verification.
▲The system features an ultra-low power design, transmitting data once daily with a battery lifespan of 6 years / 10 years (depending on battery capacity), and incorporates a battery undervoltage alarm function.
▲Employing next-generation NB-IoT data transmission technology, this system delivers extensive network coverage with stable and reliable signal connectivity.
▲This modular system features a split-type design with IP68 protection rating, facilitating easy installation and low maintenance costs. The sensors are reusable when meters require repair or replacement.

Details

Function Parameters Dimensions

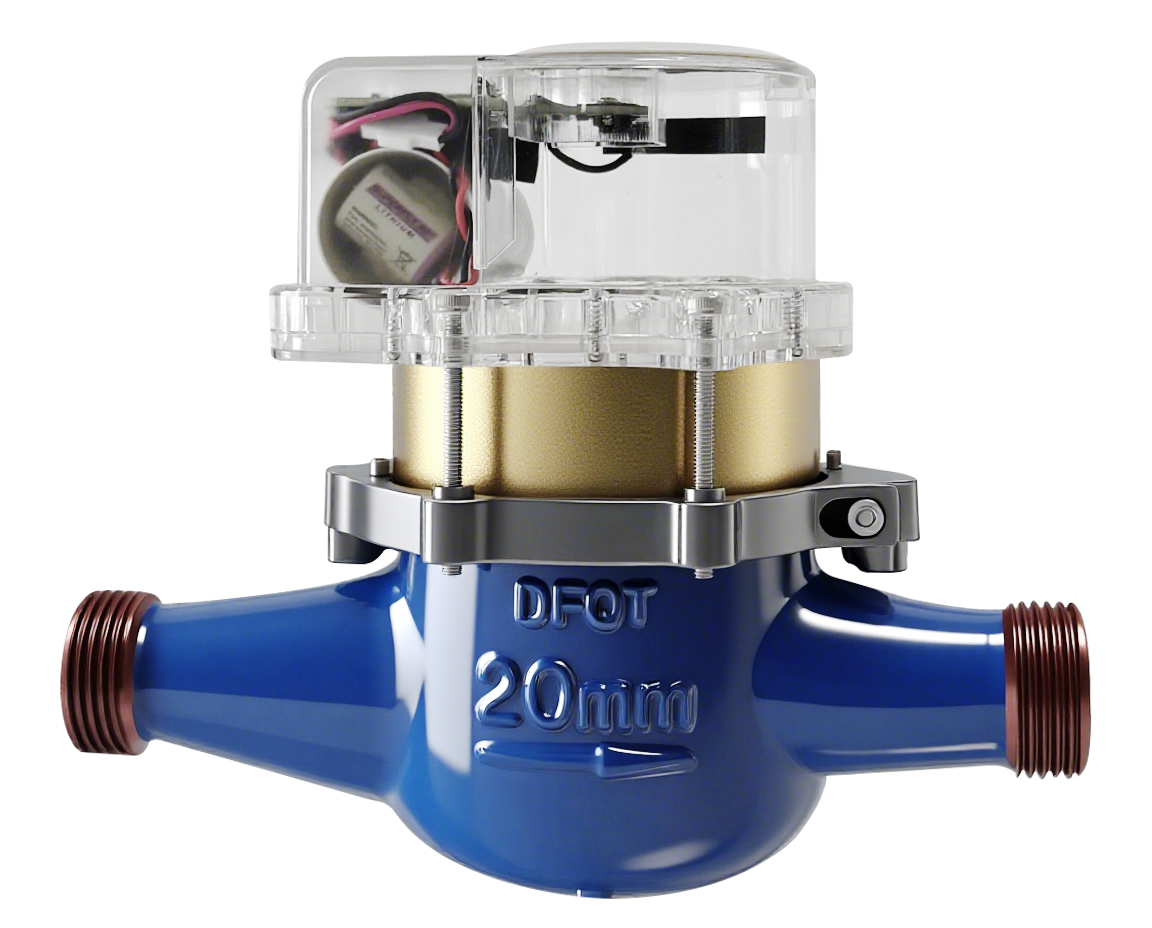

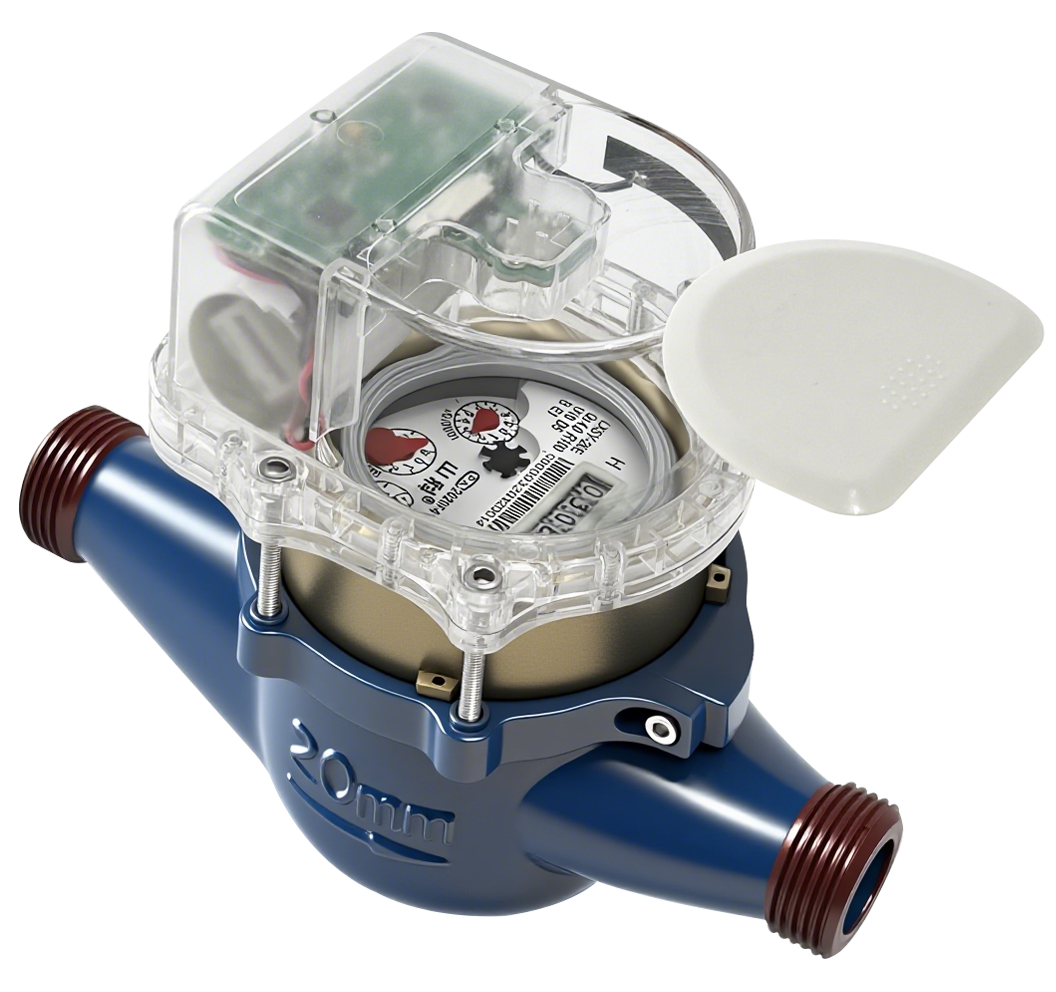

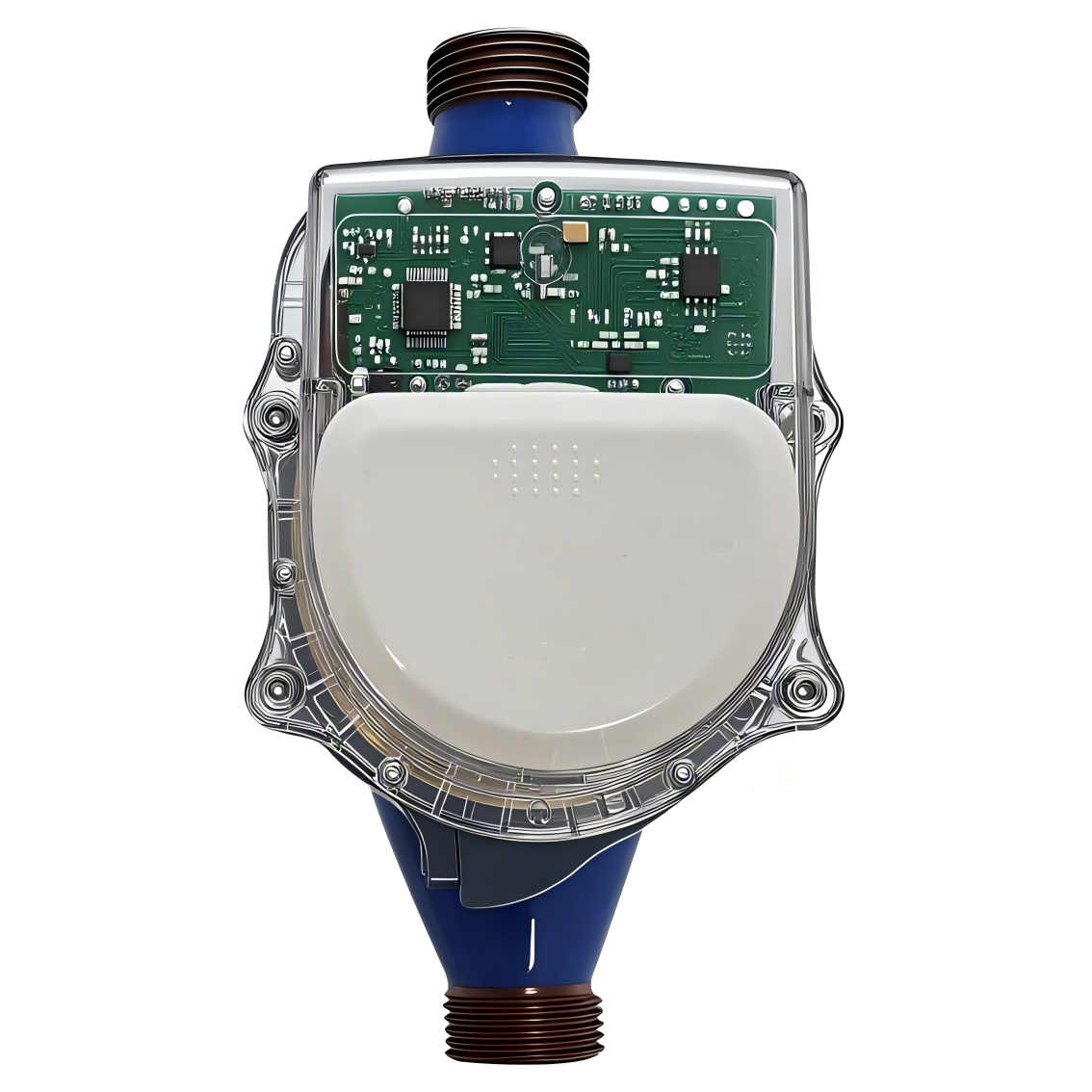

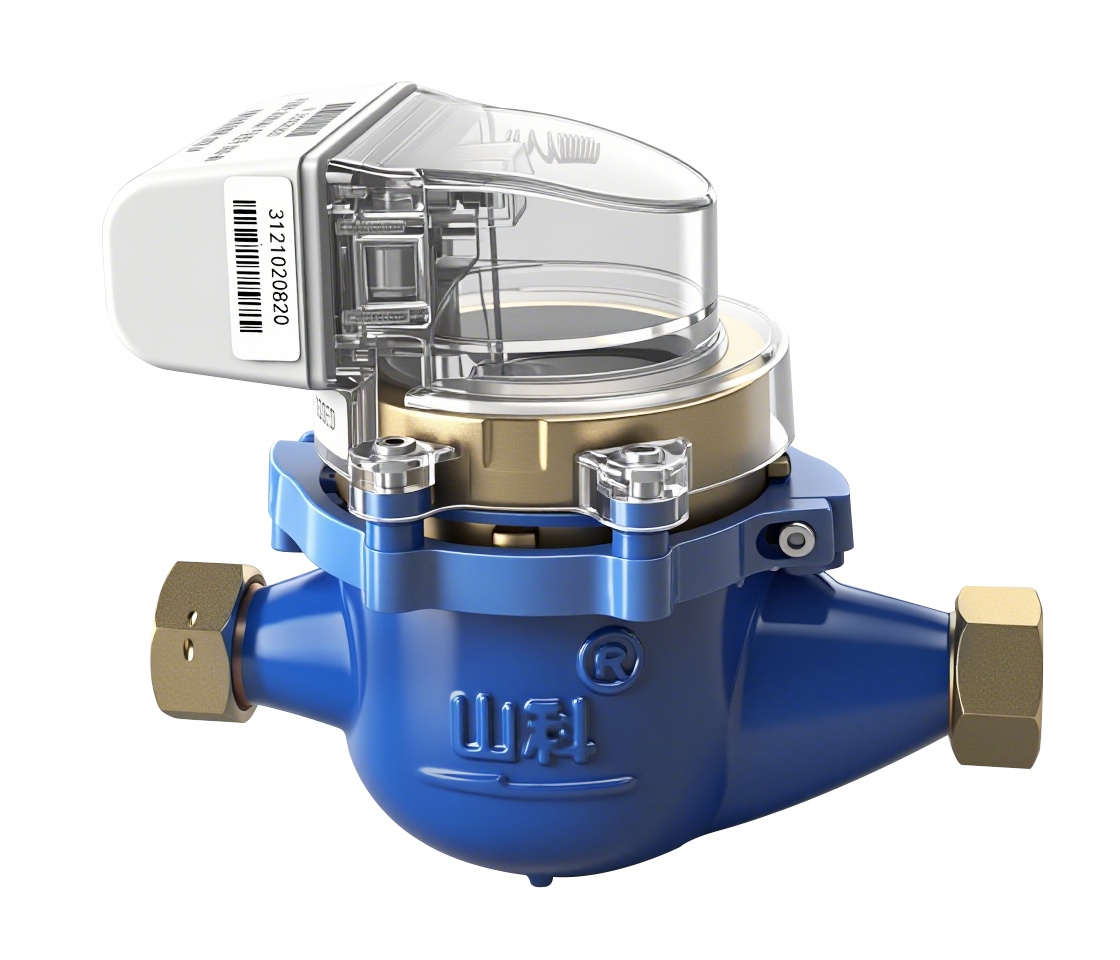

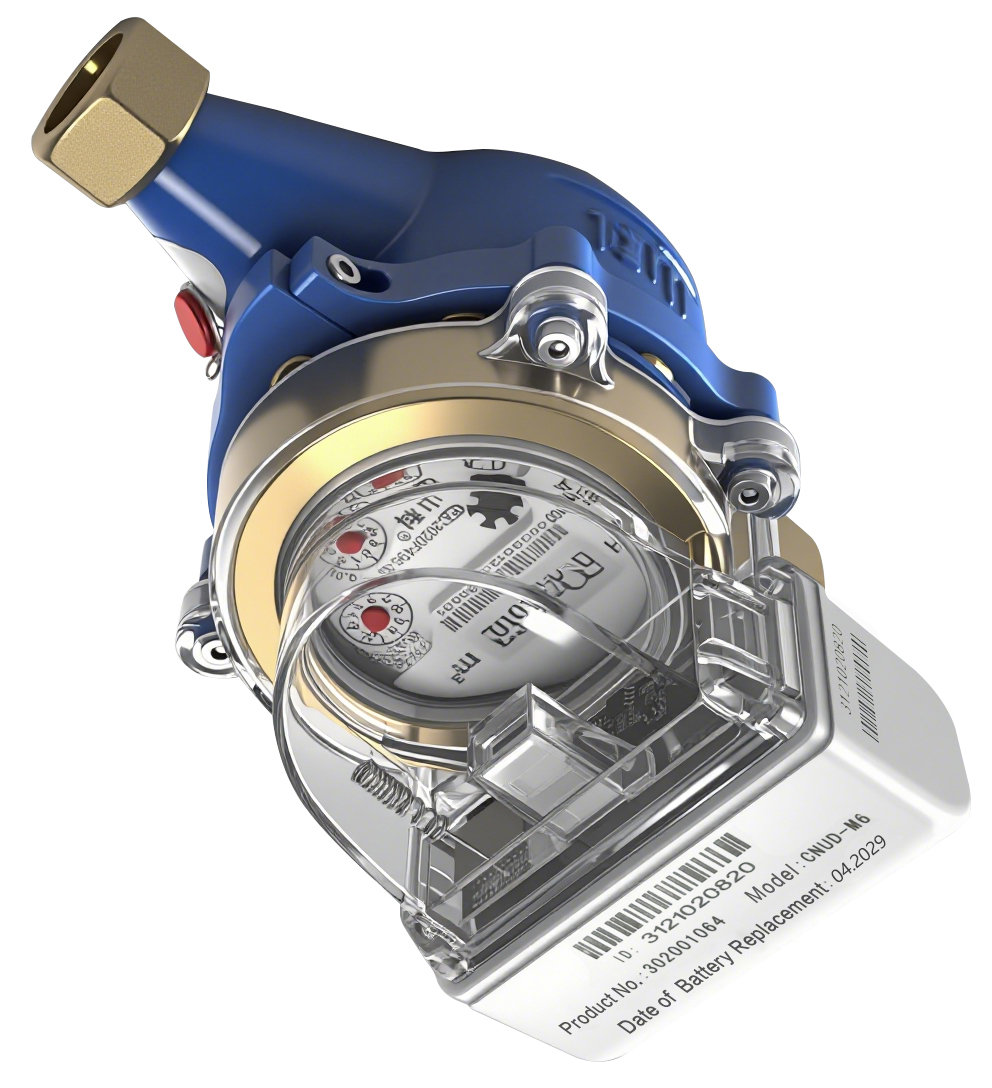

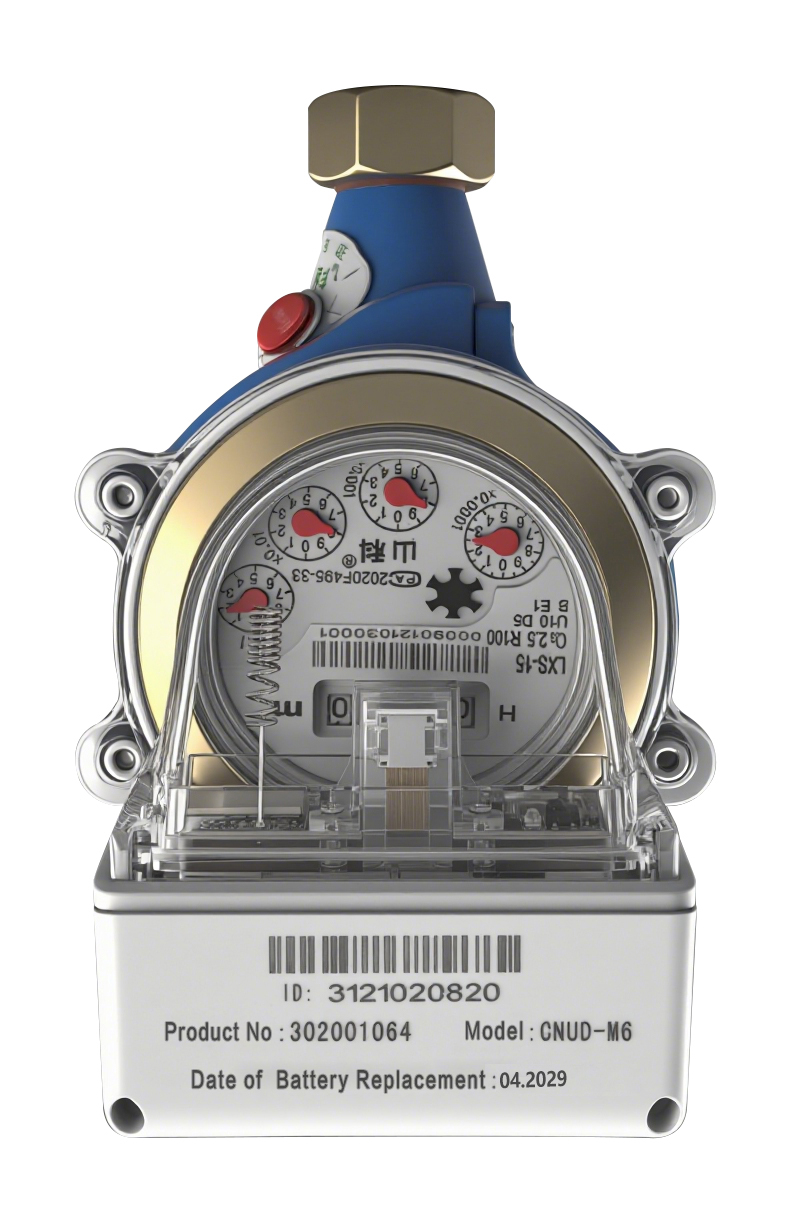

This product, the SECK Camera Direct-Reading Smart Remote Water Meter, is based on a traditional mechanical water meter, enhanced with a camera sensor and intelligent communication module. It's designed for ordinary liquid-sealed base meters with a digital window and requires no meter modification. It directly reads the digital window data without needing parameters like initial reading or meter constant, eliminating cumulative reading errors and ensuring consistency even if the meter reverses.



Communication is via M-BUS or RS485 bus for remote water usage reading.The wireless version, when used with intelligent meter-reading software, enables smart data collection from community water meters and achieves data sharing with the settlement center via networking.


Basic Parameters



Function

Describe

Data Acquisition Method

Video sensing

Battery Capacity

3.6V8.5Ah(normal), replaceable, non-rechargeable

Battery Life

≥6 \10 y

Protection Rating

IP68

Communication Interface

NB-IOT\Infrared

Operating Frequency

800-960MHz

Standby Current

10 μA (Avg.)



Flow Parameters




Nominal Diameter

DN

Range Ratio

Q3/Q1

Overload Flow Rate

Q4

Permanent Flow Rate

Q3

Transitional Flow Rate

Q2

Minimum Flow Rate

Q1

Minimum Reading

Min

Maximum Reading

Max

mm

(m3/h)

(L/h)

m3

15

80

3.125

2.5

50

31.25

0.0001

99999

100

40

25

20

80

5

4

80

50

100

64

40


Note:

Actual values shall prevail based on dial markings.

Maximum Permissible Errors:

    Lower zone: ±5% from minimum flow (Q₁) inclusive to transitional flow (Q₂) exclusive

    Upper zone: ±2% from transitional flow (Q₂) inclusive to overload flow (Q₄) inclusive

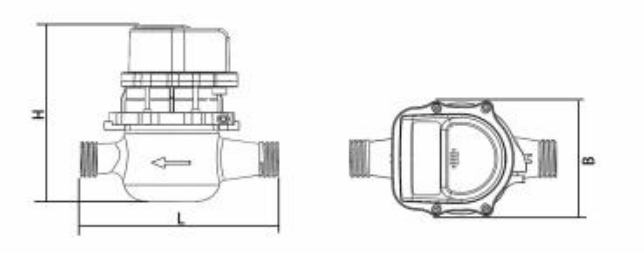

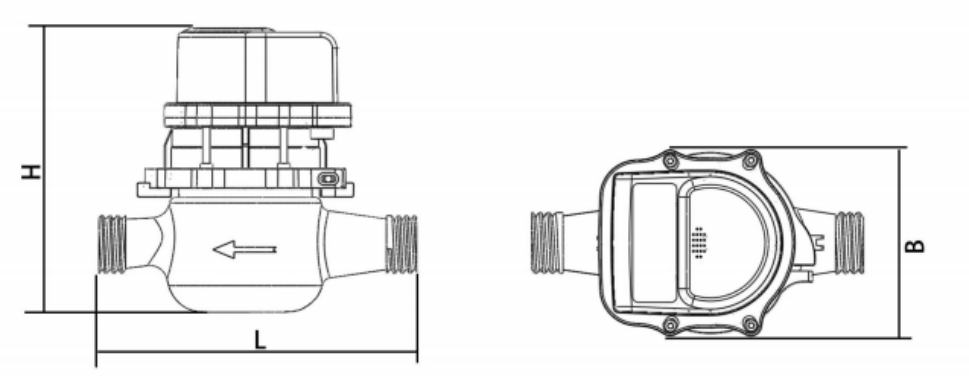

Diameter

L

B

H

Connection Thread

Weight

Kg

mm

D

15

165

100

155

R1/2

G 3/4B

1.6

20

195

100

155

R3/4

G 1B

1.9


Note: The external dimensions and weight are for reference only, and the actual product shall prevail.
