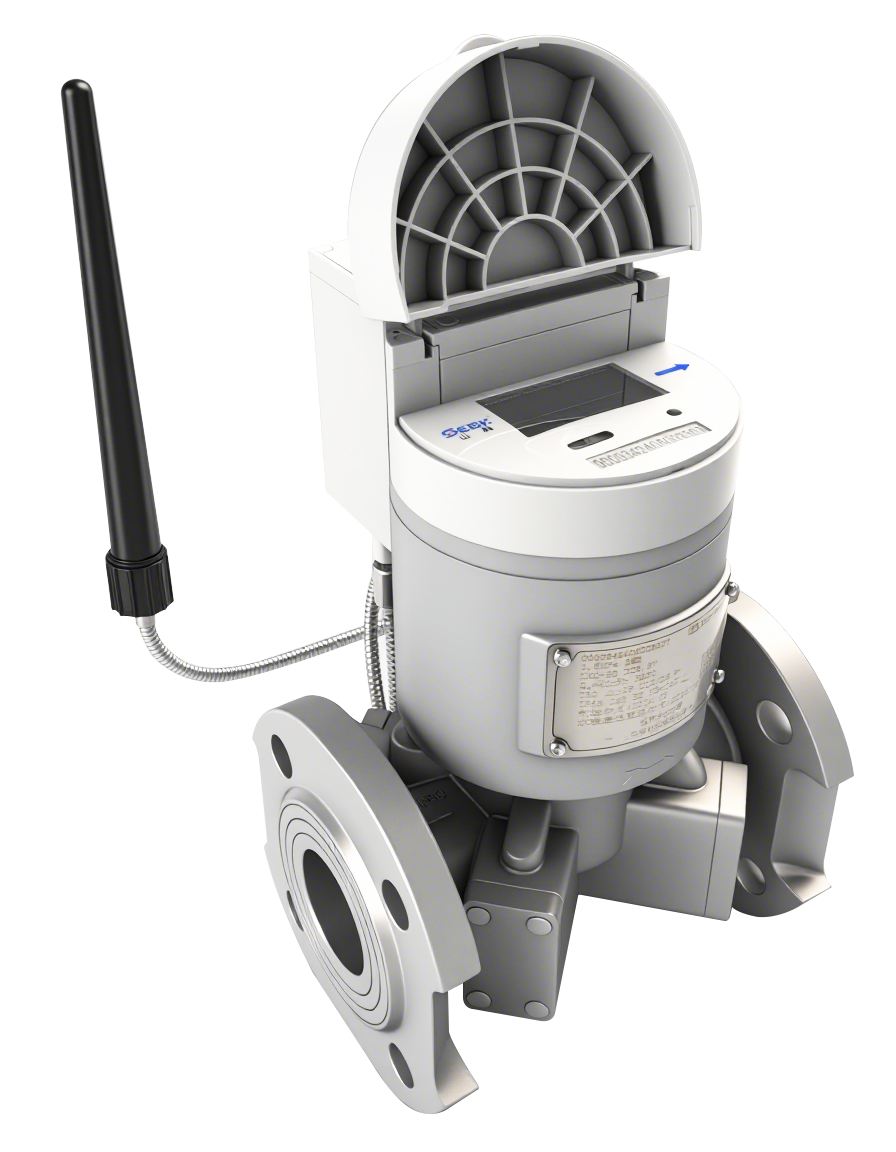

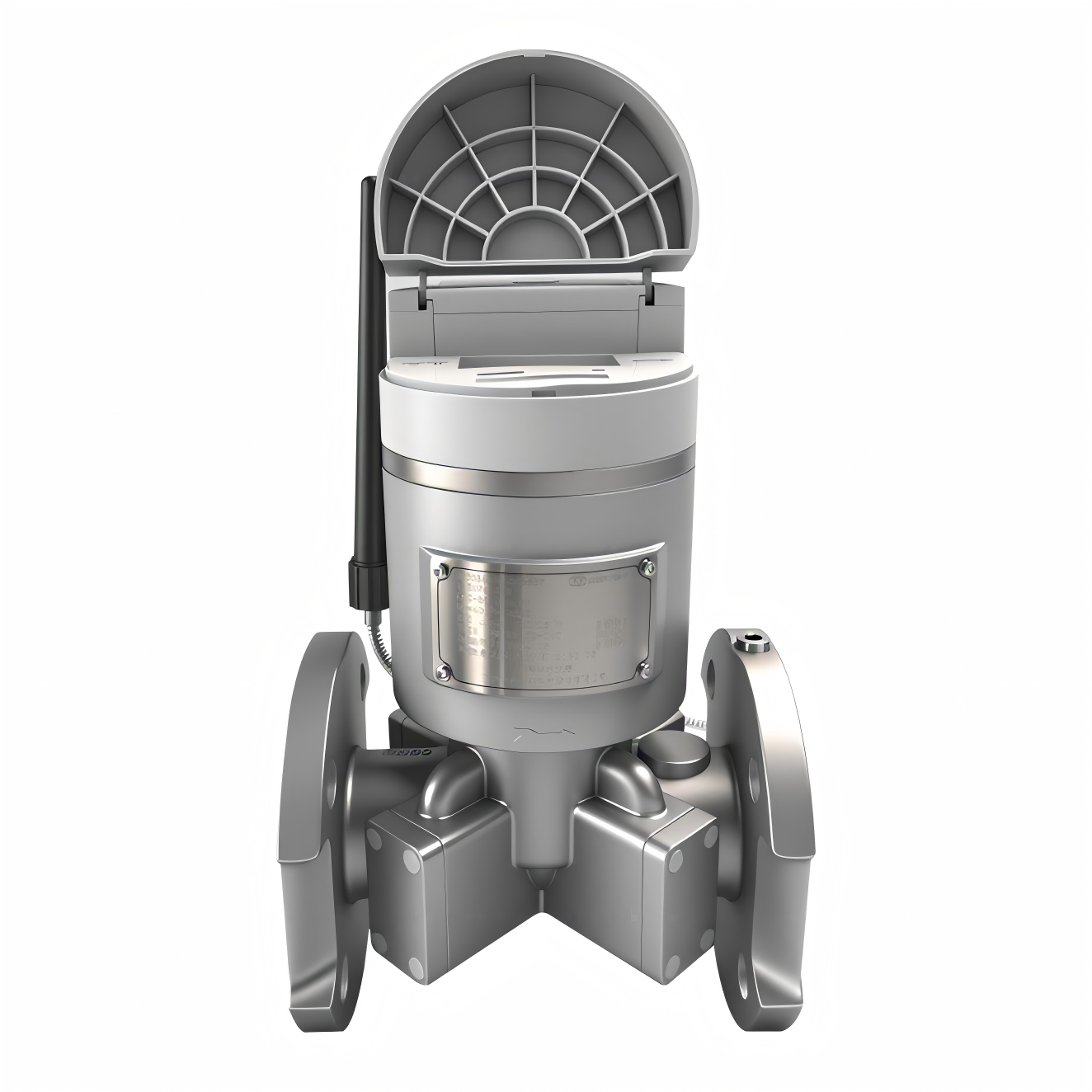

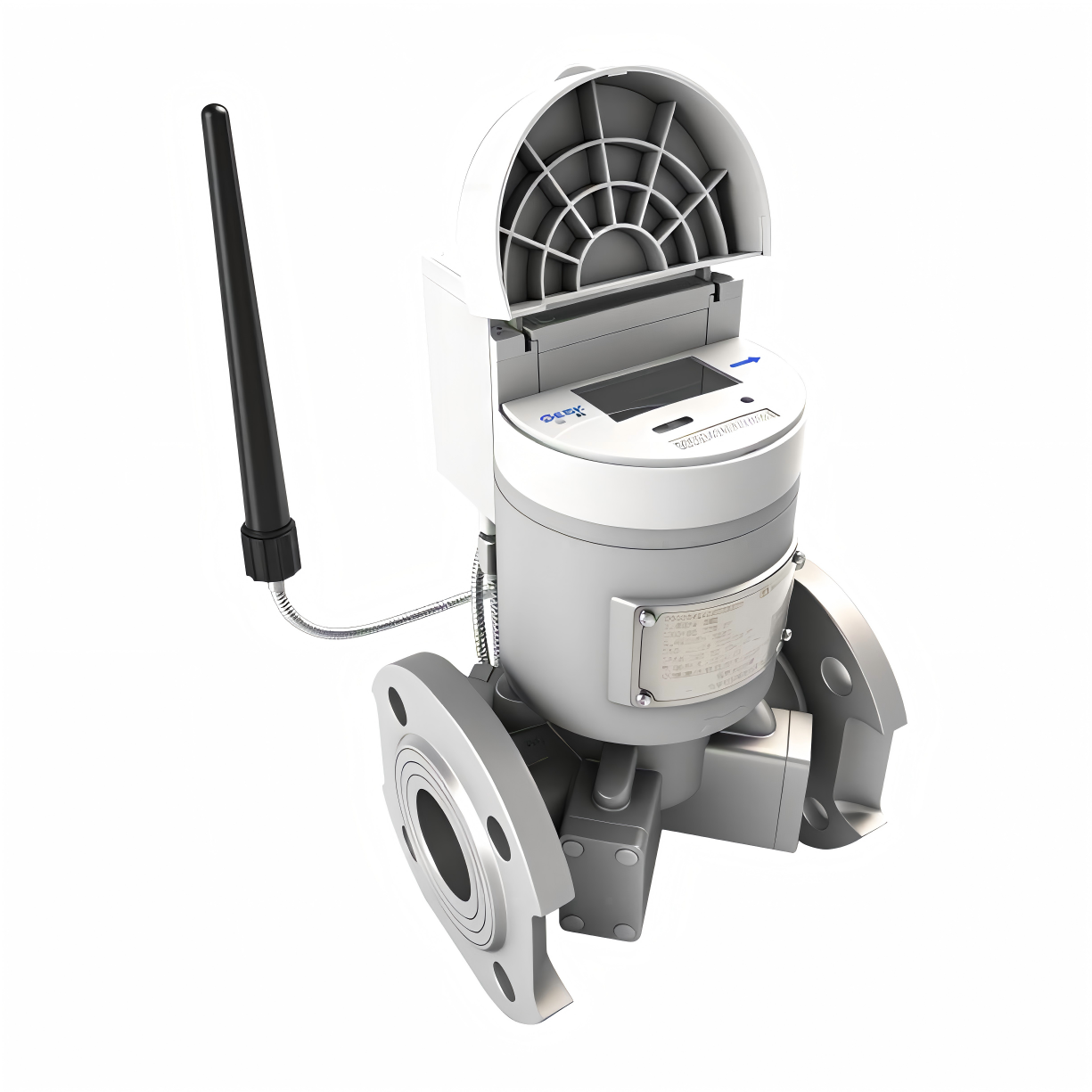

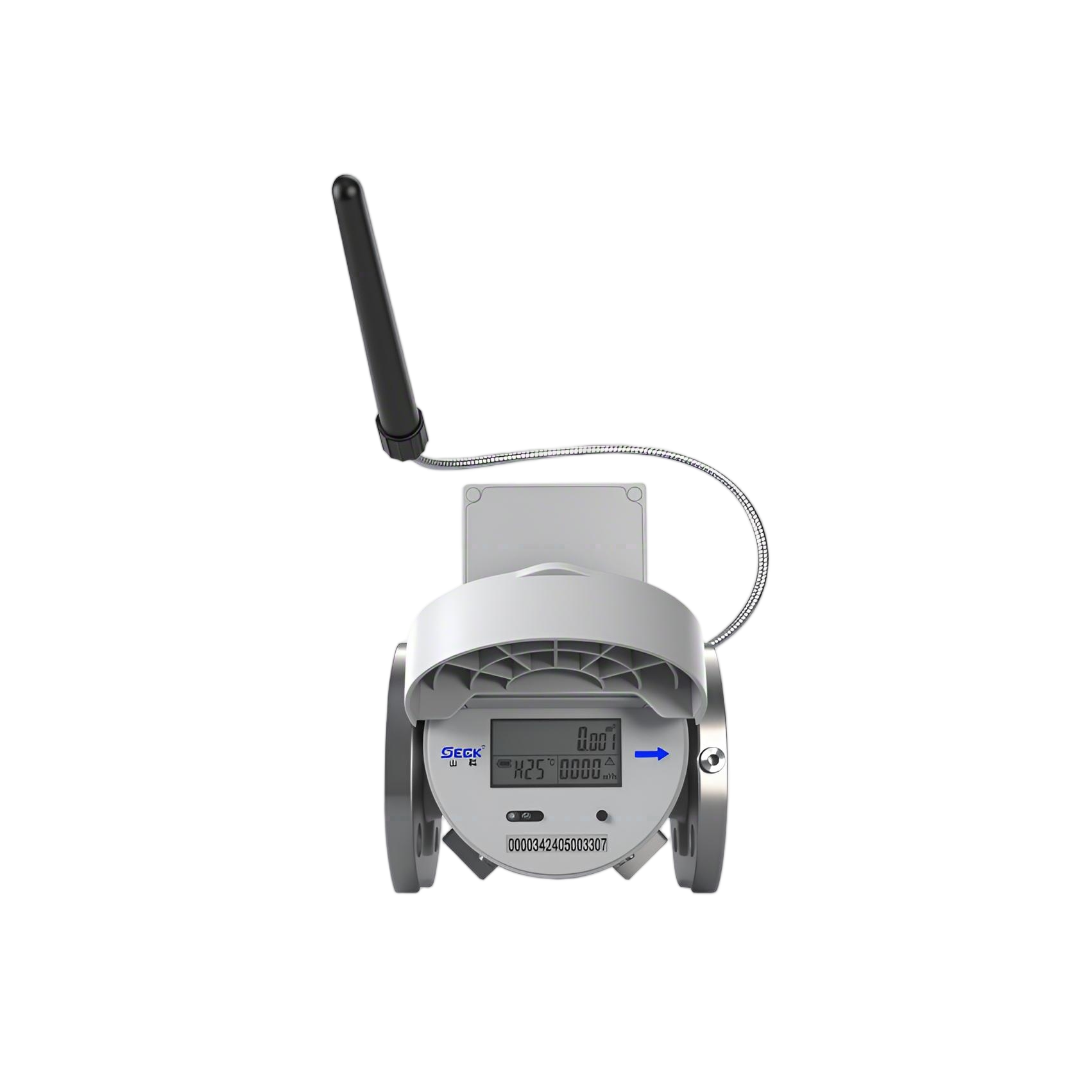

Large Caliber Ultrasonic Smart Water Meter

Large Caliber Ultrasonic Smart Water Meter

▲The valve-controlled ultrasonic cold water meter is based on the principle of time-difference method, which ensures stable and high measurement accuracy.
▲It is not affected by impurities, chemical substances, and magnetic materials in the medium.
▲The measuring mechanism has no moving parts, does not wear out, and its measurement accuracy is not affected by the duration of use.
▲The pressure loss is negligible.
▲It uses the German time - detection chip GP21, achieving a time - measurement accuracy of 22 picoseconds.

Details

Function Parameters Dimensions

The SECK LXC series ultrasonic smart water meter, using the time - difference method principle for flow measurement, is a new - generation smart water meter that integrates measurement, calculation, display, and communication. It features low pressure loss, low start - flow, high turndown ratio, strong protection, and stable measurement. With multiple patented technologies, including multi - pulse excitation, weak - signal detection with low - power consumption, variable - time filtering, and data - fusion algorithms, it ensures precise water - flow measurement.


Nominal diameter

DN50

DN65

DN80

DN100

DN125

DN150

DN200

DN250

DN300

Permanent Flow Rate

Q3(m3/h)

25

40

63

100

160

250

400

630

1000

Number of channels

Four channels

Connection method

Flanged

Range ratio

Q3/Q1= 100125 160 200 250 315 400 500)

Electromagnetic environment condition class

E2

Pressure loss class

p25  (p40,  p63

Flow field sensitivity class

U5/ D3 U0/ D0

Accuracy class

2

Pressure class

MAP10MAP16 MAP25

Temperature class

T30T50 T70 T90

Environmental class

O

Note: The above technical parameters may vary due to customer customization.


Nominal diameter

DN50

DN65

DN80

DN100

DN125

DN150

DN200

DN250

DN300

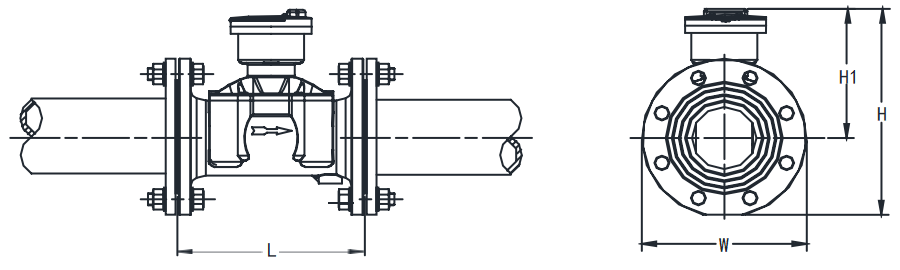

External dimensions

L

200

200

225

250

250

300

350

450

500

W

165

185

200

220

250

285

340

405

460

H1

150

158

175

181

199

217

246

272

320

H

235

248

264

287

320

355

410

452

550

Note: The external dimensions and weight are for reference only, and the actual product shall prevail.
