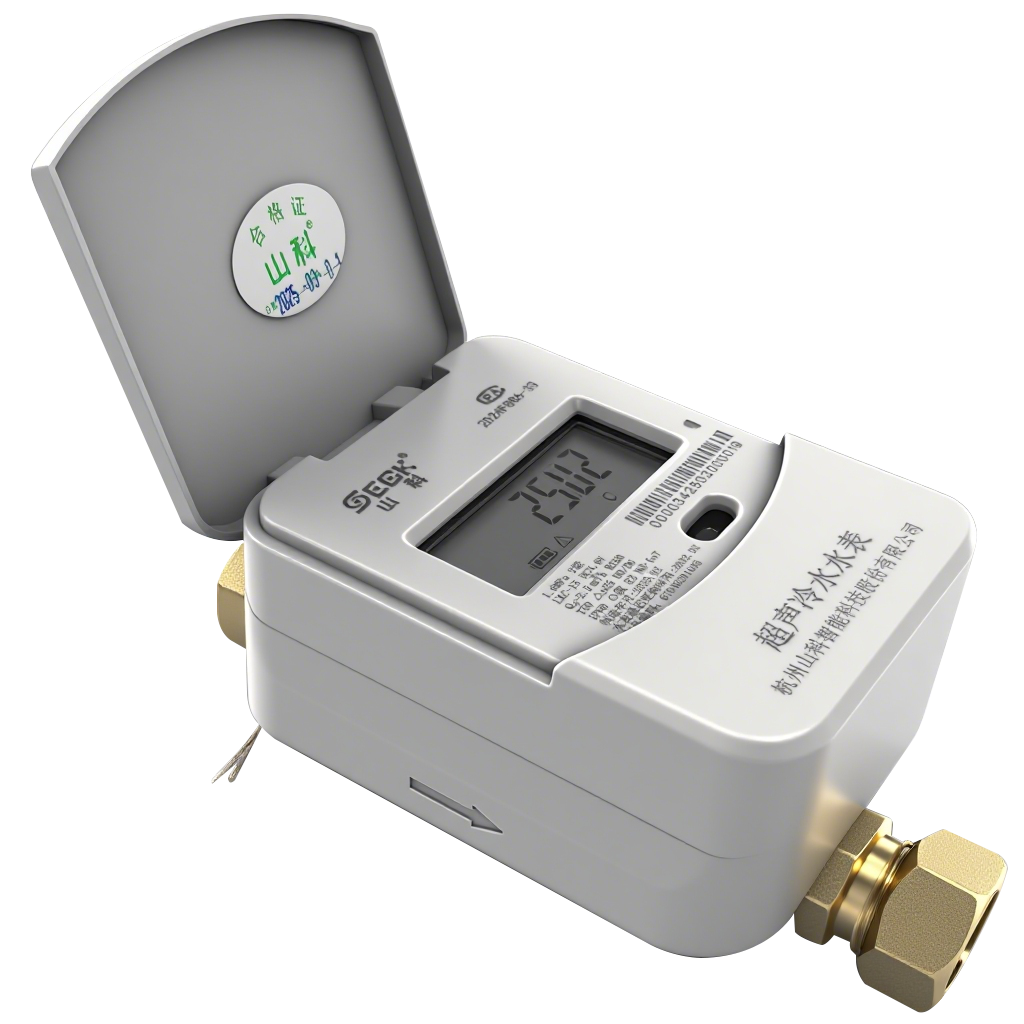

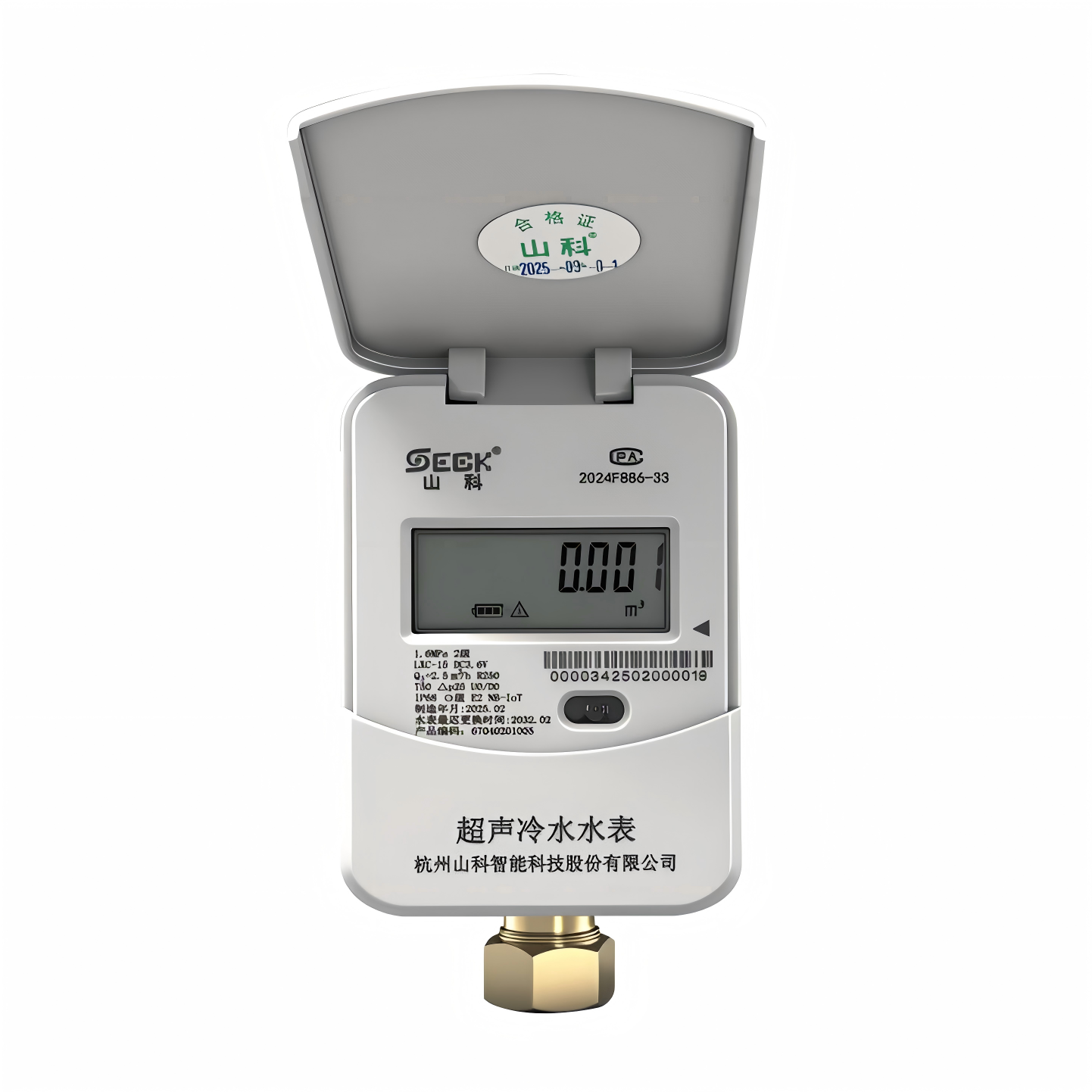

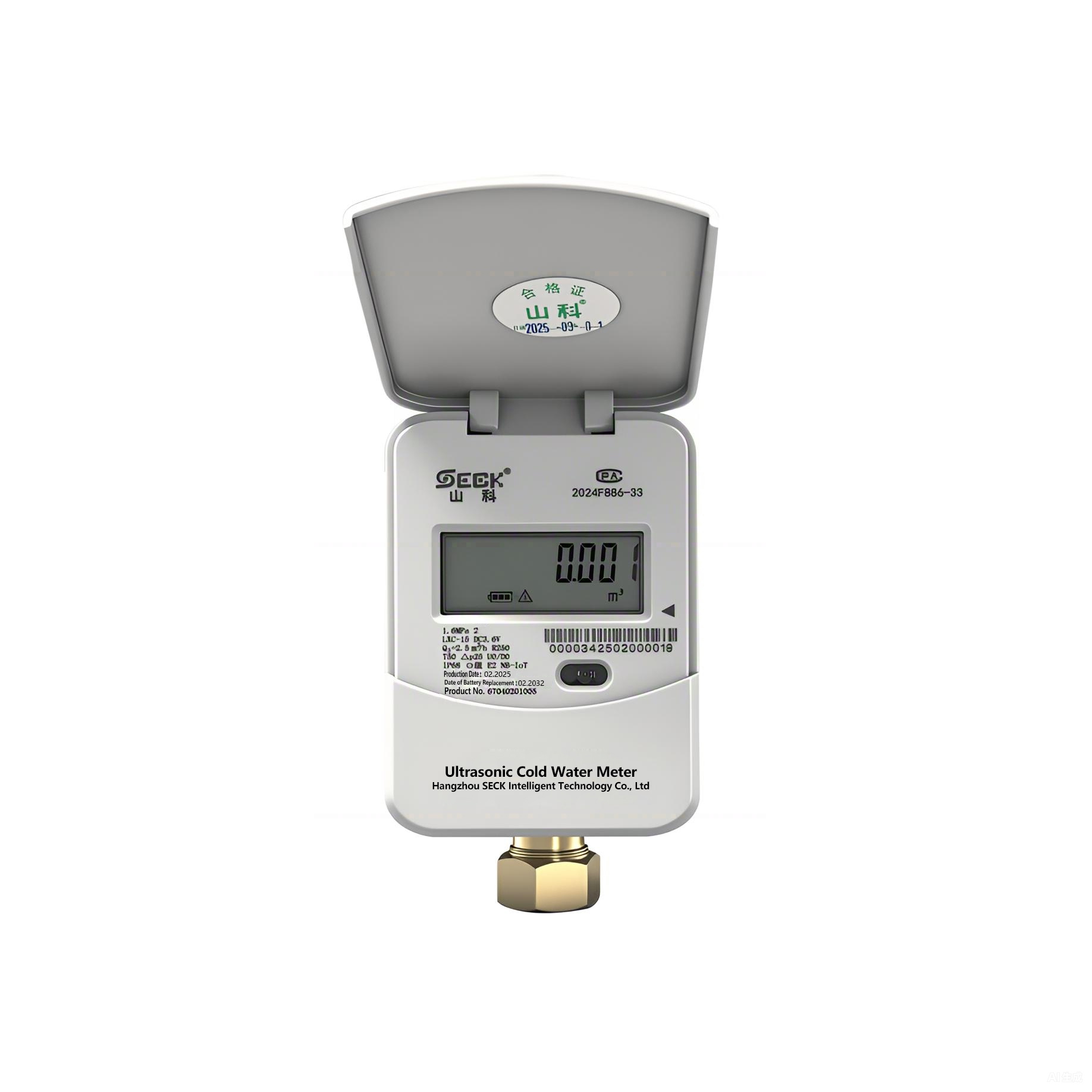

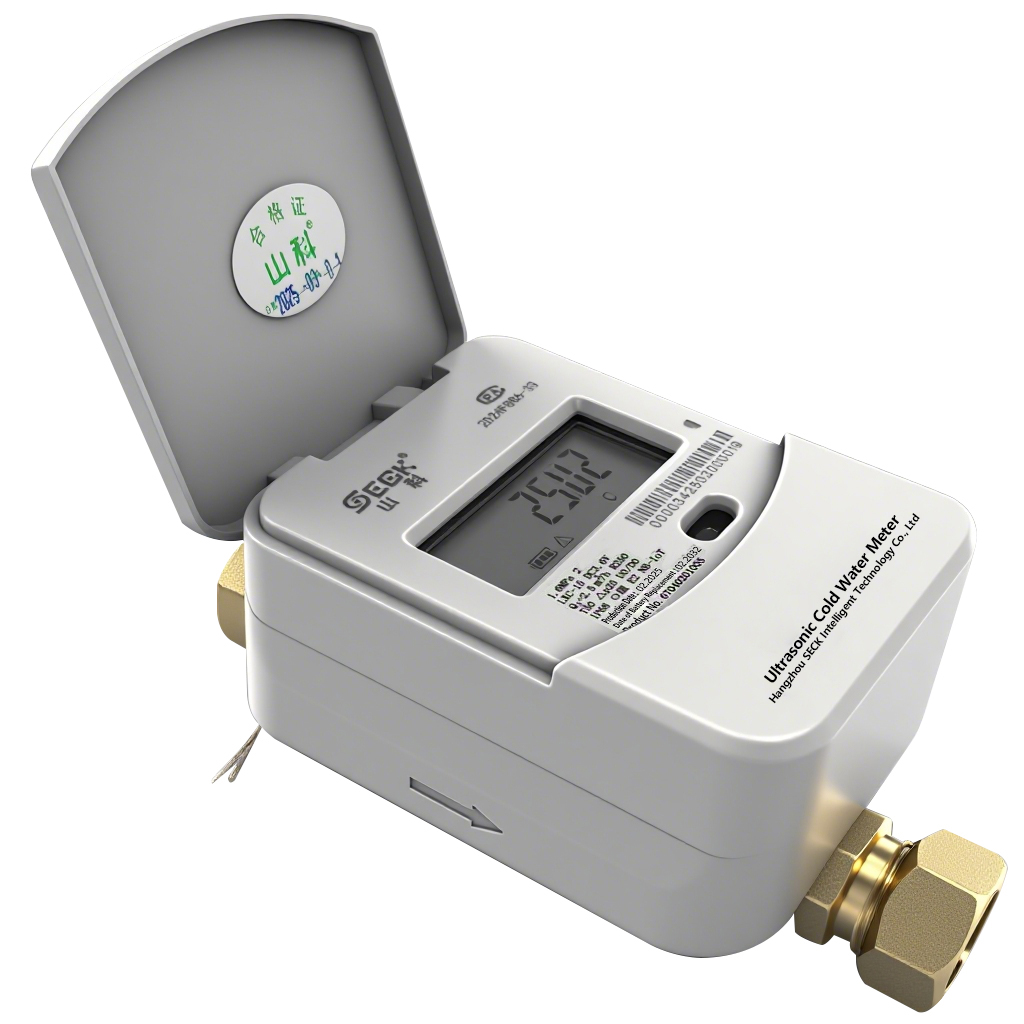

Small Caliber Ultrasonic Smart Water Meter

Small Caliber Ultrasonic Smart Water Meter

▲The valve-controlled ultrasonic cold water meter is based on the principle of time-difference method, which ensures stable and high measurement accuracy.
▲It is not affected by impurities, chemical substances, and magnetic materials in the medium.
▲The measuring mechanism has no moving parts, does not wear out, and its measurement accuracy is not affected by the duration of use.
▲The pressure loss is negligible.
▲It uses the German time - detection chip GP21, achieving a time - measurement accuracy of 22 picoseconds.

Details

Function Parameters Dimensions

The SECK LXC series ultrasonic smart water meter, using the time - difference method principle for flow measurement, is a new - generation smart water meter that integrates measurement, calculation, display, and communication. It features low pressure loss, low start - flow, high turndown ratio, strong protection, and stable measurement. With multiple patented technologies, including multi - pulse excitation, weak - signal detection with low - power consumption, variable - time filtering, and data - fusion algorithms, it ensures precise water - flow measurement.


Basic Parameters





Communication Method

M-bus

485

NB-IOT

LoRa

Transmission Distance

1000m(normal)

200m(normal)

Within the base station coverage area

Battery Life

≥7 y

≥7 y

≥7 y

≥7 y

IP Rating

IP68

IP68

IP68

IP68

Pressure Rating

MAP16

MAP16

MAP16

MAP16

Pressure Loss Rating

△p25△p40△p63

△p25△p40△p63

△p25△p40△p63

△p25△p40△p63

Temperature Class

T30T50

T30T50

T30T50

T30T50

Flow Profile Sensitivity Class

U0/D0U5/D3U10/D5

U0/D0U5/D3U10/D5

U0/D0U5/D3U10/D5

U0/D0U5/D3U10/D5

Environmental Safety Class

O

O

O

O

EMC  Class

E2

E2

E2

E2

Accuracy Class

2

2

2

2

Range ratio R

400315250default)、200160

Pipe Material

copper, stainless steel, plastic

Display Content

Cumulative flow (m³), water temperature () displayed in rotation

Display Resolution

Cumulative Flow (0.001m³), Verification Cumulative (0.001L), Temperature (0.01℃), Pressure (1kPa)

Data Storage

Using ferroelectric technology, it stores accumulated traffic monthly, automatically stores the most recent 12 months of data, and maintains cumulative data for nearly 5 years.

Power Supply & Consumption

Battery powered (DC 3.6V), replaceable, non-rechargeable, 0.25mW

Pressure Sensor

Optional, Measuring Range: 0~1.6MPa±1%FS



Flow Parameters



Nominal Diameter

DN

Permanent Flow Rate

Q3

Range Ratio

Q3/Q1

Overload Flow Rate

Q4

Permanent Flow Rate

Q3

Transitional Flow Rate

Q2

Minimum Flow Rate

Q1

Minimum Reading

Min

mm

(m3/h)


(m3/h)

(L/h)

m3

15

250

3.125

2.500

16.000

10.000

0.001 (default)

0.00001 (Optional)

999999.999

(default)

99999.99999

(Optional)

20

5.000

4.000

25.600

16.000

25

7.875

6.300

40.320

25.200

0.001 (default)

99999999.999

(default)

32

12.500

10.000

64.000

40.000

40

20.000

16.000

102.400

64.000


Note: The actual material is subject to the silk-screen marking.

Maximum Permissible Errors:

a) Within the working temperature range of 0.1℃≤Tw50, the maximum permissible error is ±5% in the lower zone (from the minimum flow rate Q1 inclusive to the transitional flow rate Q2 exclusive).

b) Within the working temperature range of 0.1℃≤Tw30, the maximum permissible error is ±2% in the higher zone (from the transitional flow rate Q2 inclusive to the overload flow rate Q4 inclusive).

c) Within the working temperature range of 30℃≤Tw50, the maximum permissible error is ±3% in the higher zone (from Q2 inclusive to Q4 inclusive).

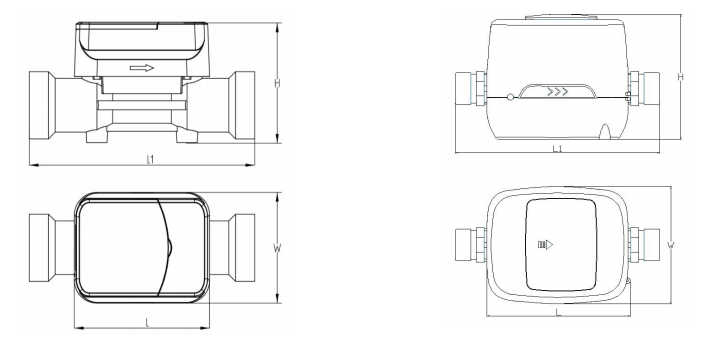

Type

DN

L1

L

W

H

Connection Thread

Weight


mm

d

D

kg

Flip-cover Ver.

15

165

120

98

81.5

R1/2

G3/4

0.7

Flip-cover Ver.

20

195

120

98

86.5

R3/4

G1

0.85

Flip-cover Ver.

25

160/225

120

98

95

R1

G1-1/4

1.03/1.05

Flip-cover Ver.

32

180/230

120

98

100

R1-1/4

G1-1/2

1.28/1.30

Flip-cover Ver.

40

200/245

120

98

108

R1-1/2

G2

1.73/1.82

Slide-cover Ver.

15

165

116

96

102

R1/2

G3/4

0.8

Slide-cover Ver.

20

195

116

96

102

R3/4

G1

1.0

Slide-cover Ver.

25

225

116

96

102

R1

G1-1/4

1.3

Note: The external dimensions and weight are for reference only, and the actual product shall prevail.
