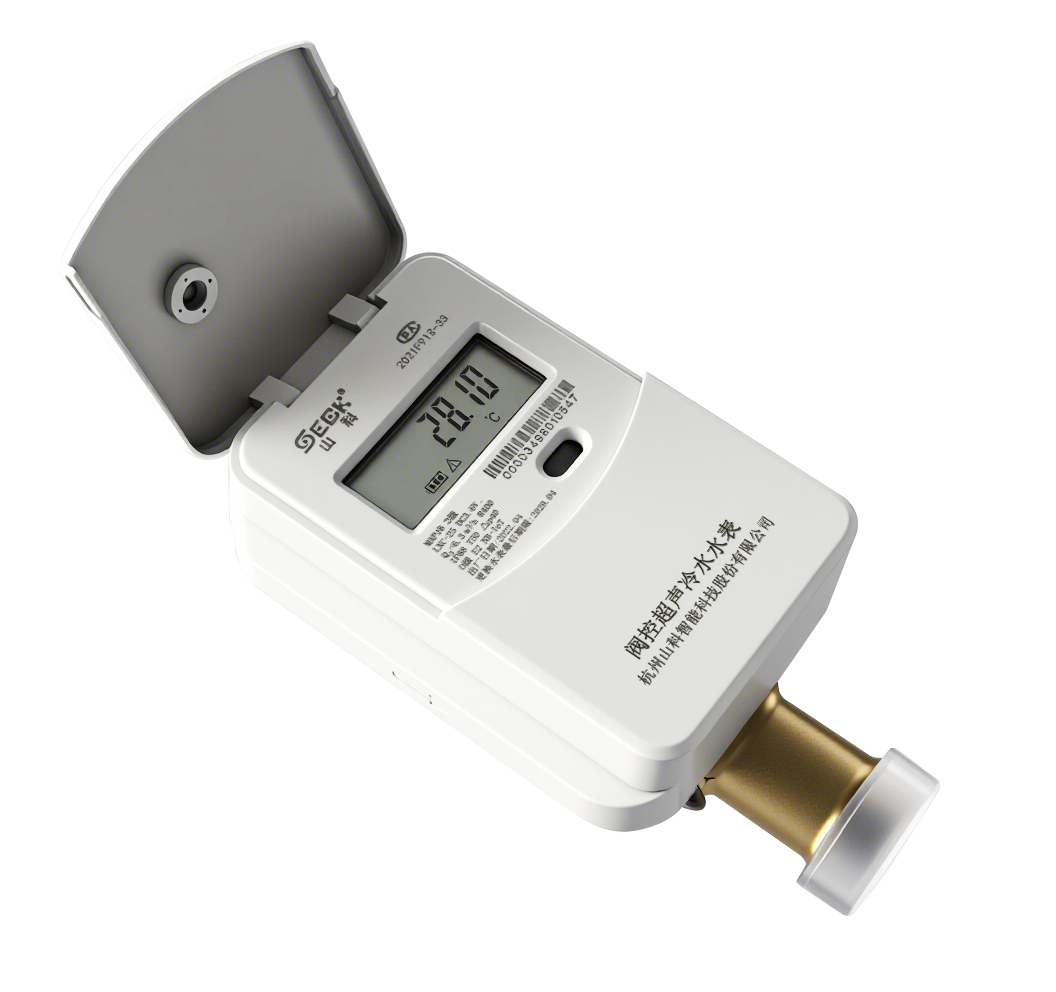

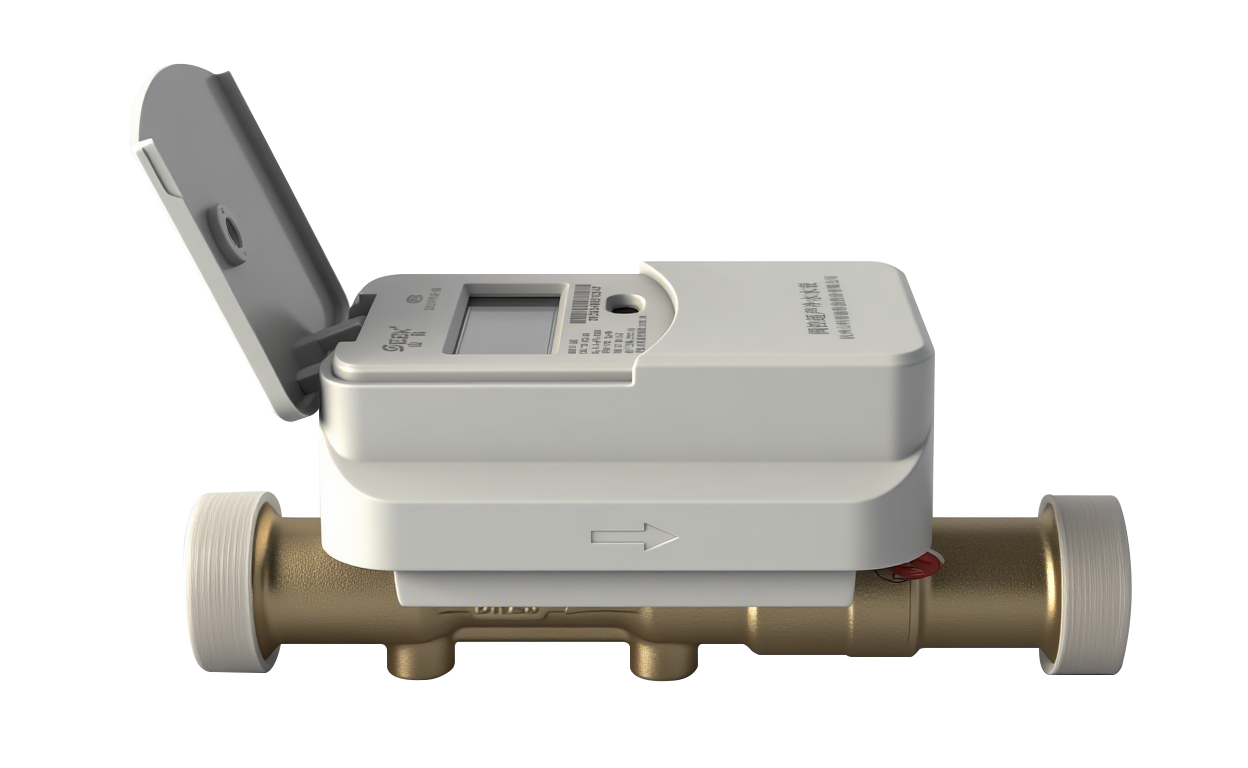

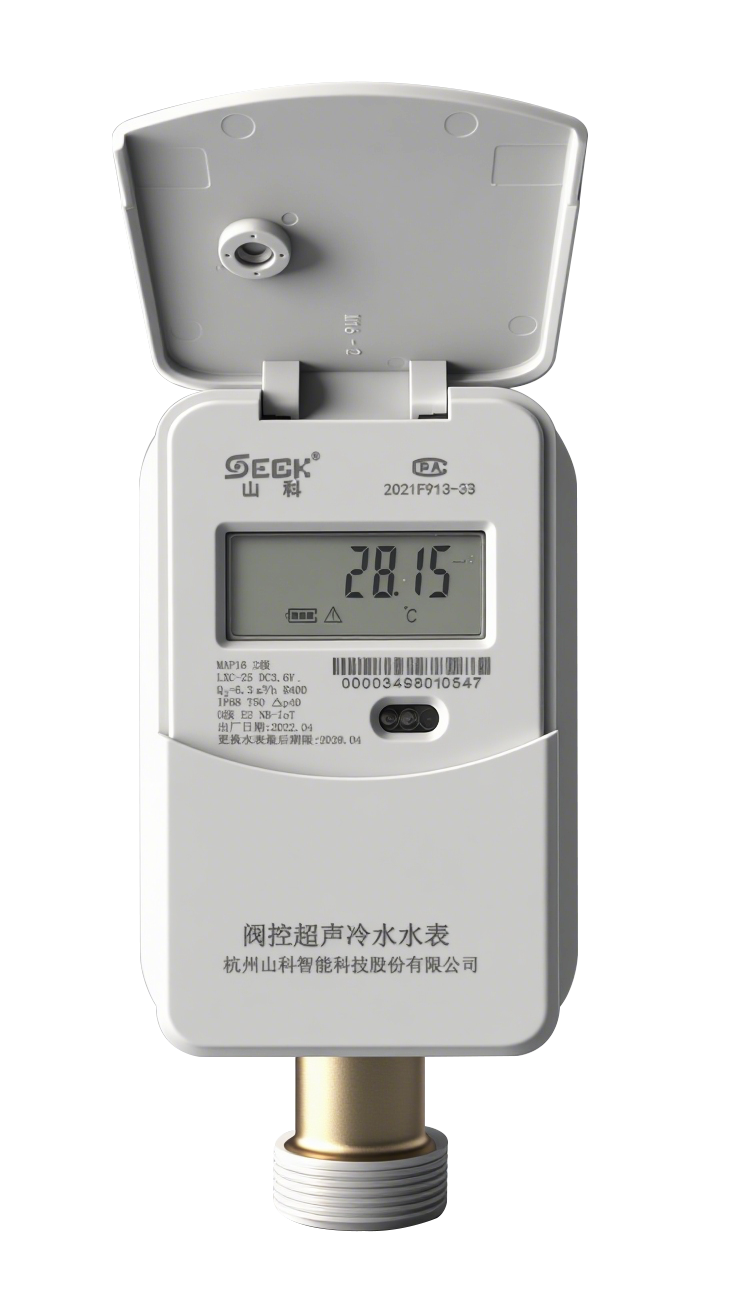

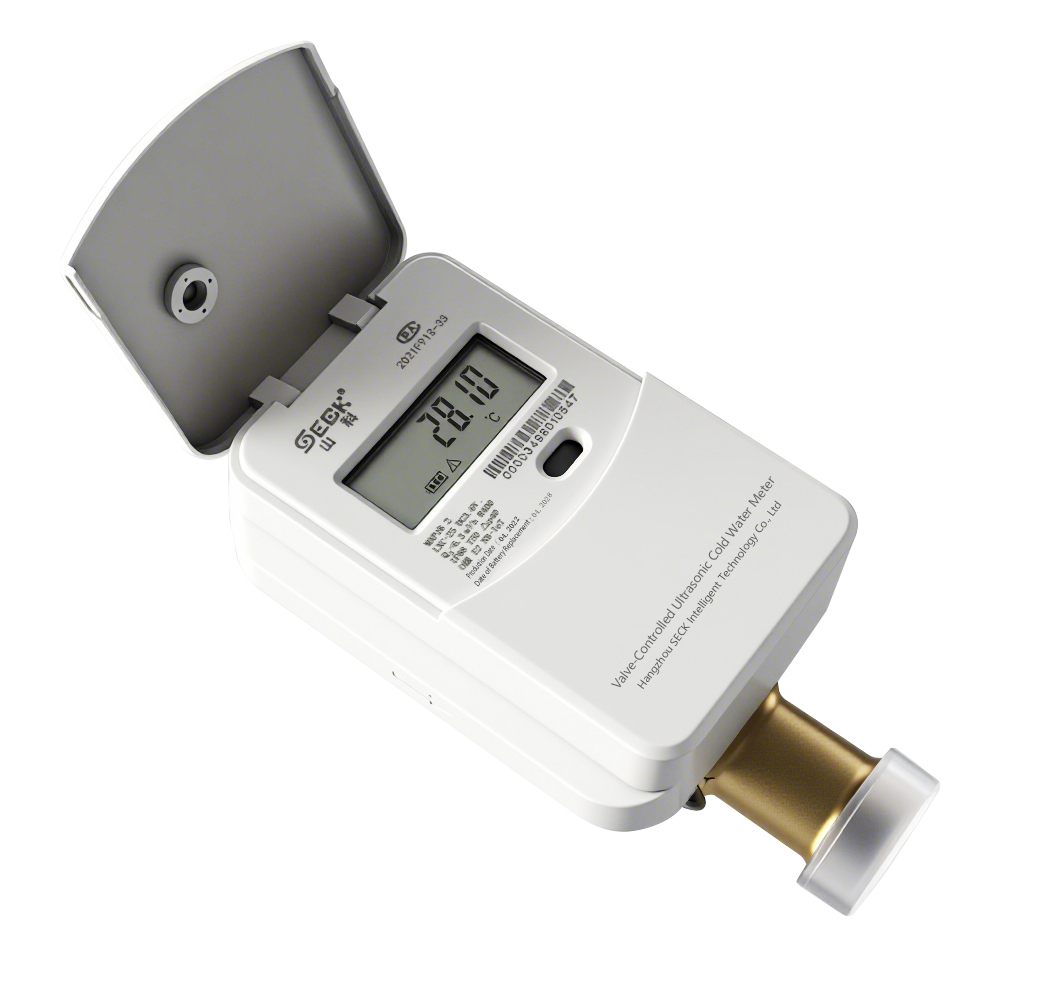

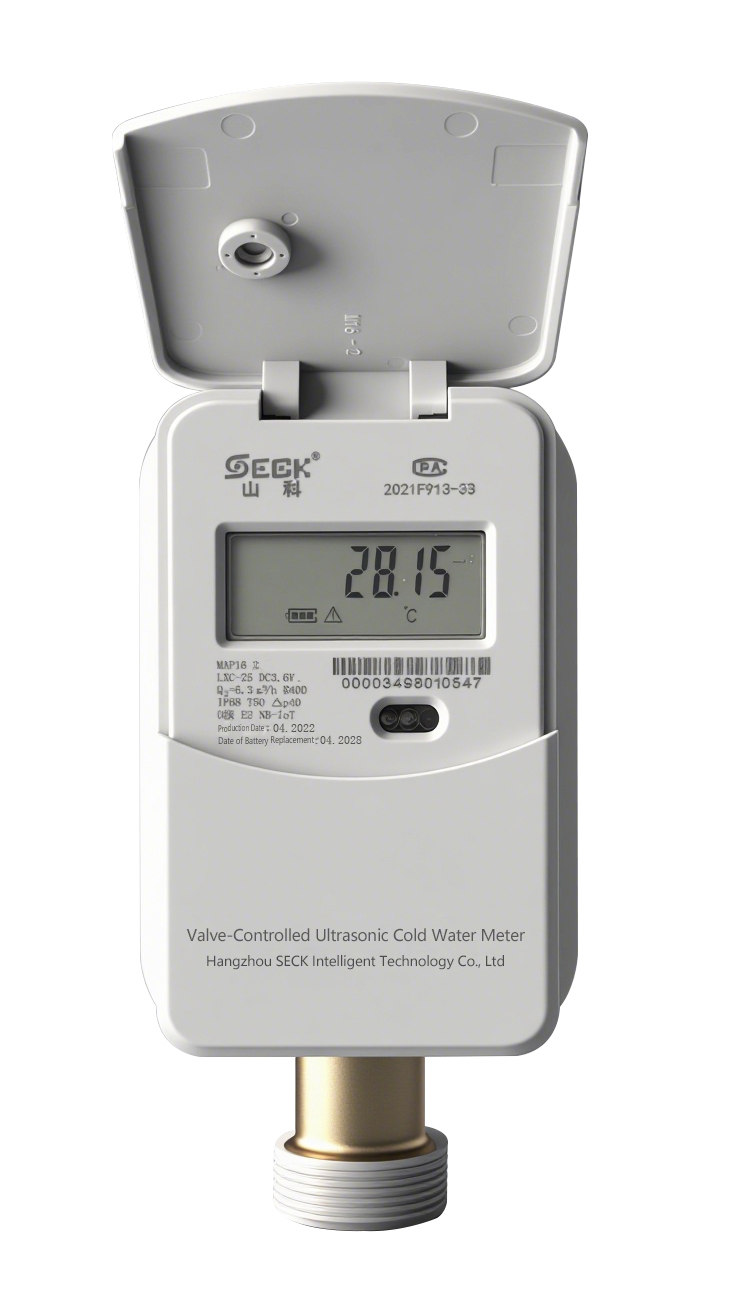

Valve-Controlled Ultrasonic Smart Water Meter

Valve-Controlled Ultrasonic Smart Water Meter

▲Valve-Controlled Ultrasonic Cold Water Meter operates on the transit-time differential principle, delivering consistently high measurement accuracy under varying flow conditions.
▲Engineered with ultra-low power consumption, this device operates on a single-cell battery achieving 7+ years of service life—ensuring maintenance-free operation throughout its deployment cycle.
▲High repeatability, low pressure drop, no moving parts, and accuracy in compliance with GB/T 778-2018 and JJG 162-2019 calibration regulations.
▲Supports NB-IoT/RS-485/M-BUS/LoRa communication, enabling remote meter reading and valve control, facilitating centralized management for users and allowing for intelligent analysis of pipeline network data.
▲Designed for continuous long-term submersion with IP68-rated construction.

Details

Function Parameters Dimensions

The SECK LXC series ultrasonic valve-controlled smart water meter uses the principle of ultrasonic time difference method for flow measurement. It is a new type of smart water meter that integrates measurement, accumulation, display, and communication. It has advantages like low pressure drop, low start-up flow, high range ratio, strong protection, and stable measurement. It uses multiple patented technologies, including multi-pulse excitation, weak signal detection with low power consumption, variable time filtering algorithms, and data fusion algorithms, to accurately measure water consumption.



Users can access the engineering mode via the infrared interface to view information on different display screens and can enter the instrument calibration mode using an infrared handheld device. Remote valve control is achievable through NB-IoT, and on-site valve operation can be done using infrared tools.


Basic Parameters



Function

Parameter

Accuracy Class

2

Rangeability (R)

250(default)200160125

Pipe Material

copper

Maximum Allowable Working Pressure (MAWP)

1.6MPa

Temperature Class

T30T50

Upstream/Downstream Flow Profile Sensitivity Class

U0/D0U5/D3U10/D5

Environmental Class / EMC Immunity Class

0E2

Display Content

Cumulative flow (m³), water temperature () displayed in rotation

Display Resolution

Cumulative flow (0.001m³), calibration cumulative (0.001L)

Display Range

Cumulative flow0~999999.999 m³

Data Communication

NB-IoT/RS-485/M-BUS/LoRa

Data Retention

Using ferroelectric technology, it stores accumulated traffic monthly, automatically stores the most recent 12 months of data, and maintains cumulative data for nearly 5 years.

Power Management & Consumption

Battery powered (DC 3.6V), replaceable, non-rechargeable, 0.25mW

IP Rating

IP68

Configuration Tools

Android Debugger V3.0 (Bluetooth Connection)




Flow Parameters


Nominal Diameter

DN

Permanent Flow Rate

Q3

Range Ratio

Q3/Q1

Overload Flow Rate

Q4

Permanent Flow Rate

Q3

Transitional Flow Rate

Q2

Minimum Flow Rate

Q1

Minimum Reading

Min

Maximum Reading

Max

mm

(m3/h)


(m3/h)

(L/h)

m3

15

2.5



250

3.125

2.500

16.000

10.000

0.001

999999.999

20

4.0

5.000

4.000

25.600

16.000

25

6.3

7.875

6.300

40.320

25.200


Maximum Permissible Errors:

a) Within the working temperature range of 0.1℃≤Tw50, the maximum permissible error is ±5% in the  lower zone (from the minimum flow rate Q1 inclusive to the transitional flow rate Q2 exclusive).

b) Within the working temperature range of 0.1℃≤Tw30, the maximum permissible error is ±2% in the higher zone (from the transitional flow rate Q2 inclusive to the overload flow rate Q4 inclusive).

c) Within the working temperature range of 30℃≤Tw50, the maximum permissible error is ±3% in the higher zone (from Q2 inclusive to Q4 inclusive).

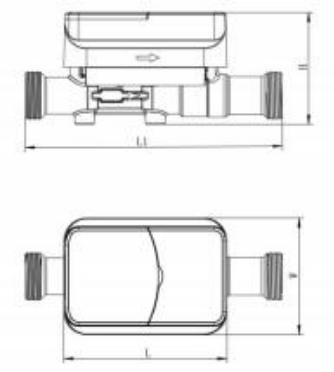

Nominal Diameter

L1

L

W

H

Connection Thread

mm

d

D

15

165

143

102

84

R1/2

G3/4

20

195

143

102

89

R3/4

G1

25

225

143

102

98

R1

G1-1/4
