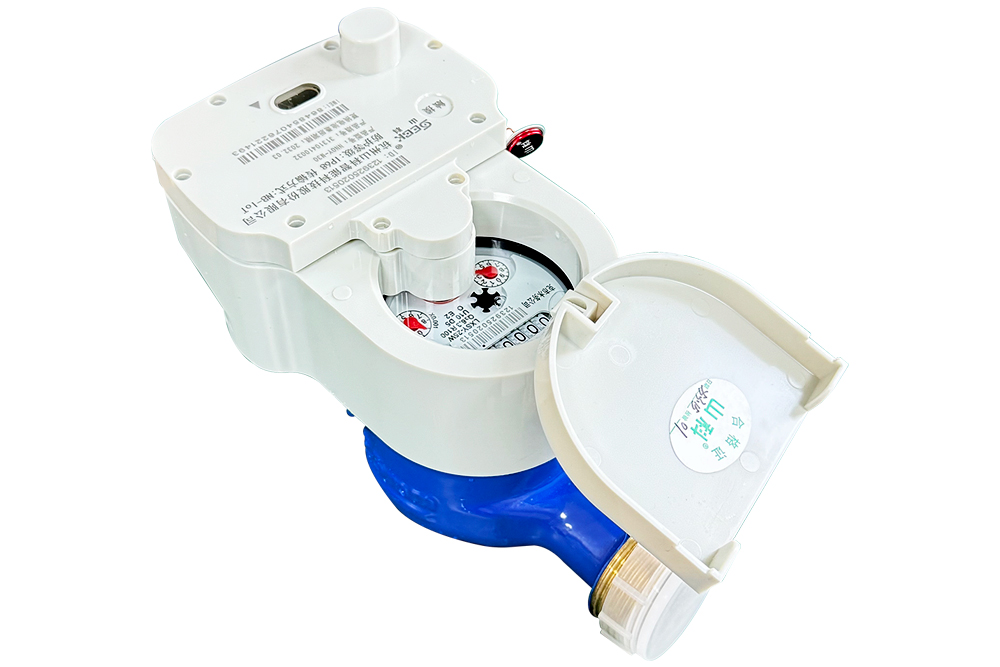

Non-Magnetic Valve-Controlled Smart Water Meter

M30 Non-Magnetic

1.Using remote module and separate base design; easy installation; low maintenance costs
2.Magnetic induction data collection; low-power design; anti-magnetic interference.
3.M-BUS/RS485 bus communication or NB-IoT/LoRa wireless communication for remote water meter reading.
4.IP68 protection rating; suitable for various complex environments.

Details

Function Parameters Dimensions


1.Using remote module and separate base design; easy installation; low maintenance costs

2.Magnetic induction data collection; low-power design; anti-magnetic interference.

3.M-BUS/RS485 bus communication or NB-IoT/LoRa wireless communication for remote water meter reading.

4.IP68 protection rating; suitable for various complex environments.

5.Valve - controlled water meters enable remote valve operation via management software, making meter reading and control more convenient, reliable, labor - saving, and efficient.

6.These water meters comply with CJ/T188 or DL/T645 communication protocols and support custom protocols as per customer needs.

7.Spherical jewel bearings and optimized gear design ensure long - term accurate measurement of varied flow states.

8.Available in dry/wet base meters and iron/copper/plastic/stainless steel casings; optional external antenna.

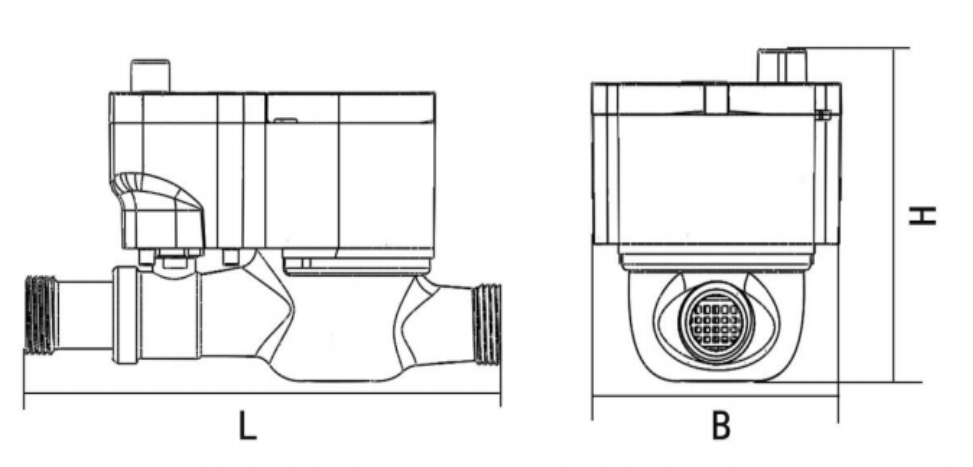

TypeDNLBHTheard dTheard DWeight
mmdDkg
LXSY-1515 165 104 135 R1/2G3/41.8
LXSY-2020 195 104 135 R3/4G12.0
LXSY-2525 225 104 140 R1G11/42.5
Note: The dimension is only for reference, subject to available products.
